Powered Roller Conveyor Merge

R5M

Application

Zero pressure accumulation conveying and merging into a conveyor line of goods in various sizes.

  • for insertion at an angle of 45°
  • merging of multiple lanes into one main line
  • fully integrated control electronics
Request
Product features
share-icon share-icon share-icon share-icon share-icon

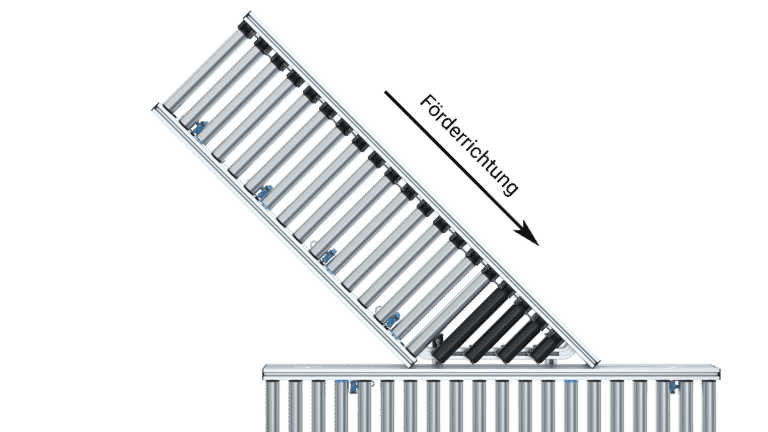

Powered Roller Conveyor Straight with Merge

Powered Roller Conveyor Straight with Merge

Powered Roller Conveyor with stand

Powered Roller Conveyor with stand

Powered Roller Conveyor Straight with Merge
Powered Roller Conveyor with stand
Article
Technical data
Measurement
Downloads

Technical data

Drive
  • brushless 24V DC motor
  • speed code / speed:
    15 = 2 to 20m/min (Alternative)
    20 = 10 to 28m/min (Standard)
    35 = 15 to 50m/min (Alternative)
  • temperature range: from +2°C to +40°C
  • max. continuous current per motorized roller: 2.5A
  • Ø continuous current per motorized roller: 1.5A
  • conveyor rollers driven by Poly-V belts
  • roller material: galvanized steel
  • belt material: chloroprene with PA tension members
  • frame material: aluminum satin anodized
  • max. product load: 50kg

Control unit

completely wired incl. sensors and control cabinet

Configuration

zero pressure accumulation control logic with downstream powered roller conveyor (not with EtherCAT)

Measurement

Powered Roller Conveyor Merge Powered Roller Conveyor Merge, Dimensions
