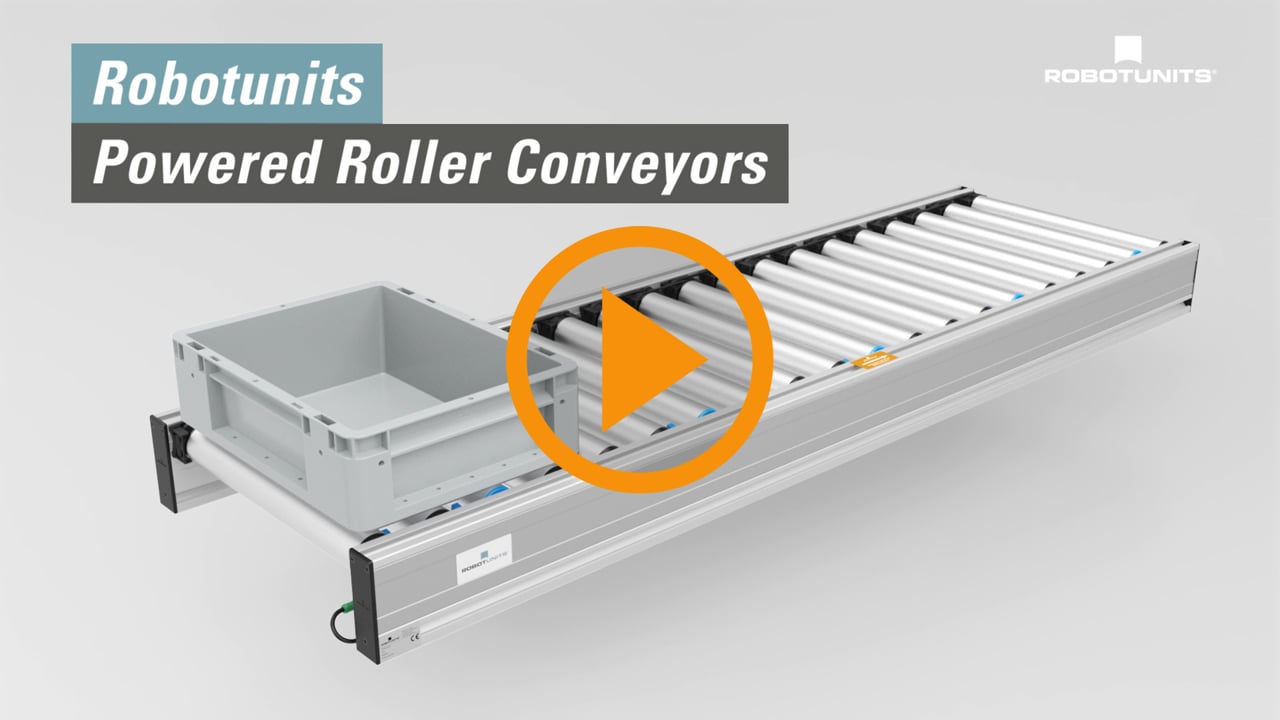

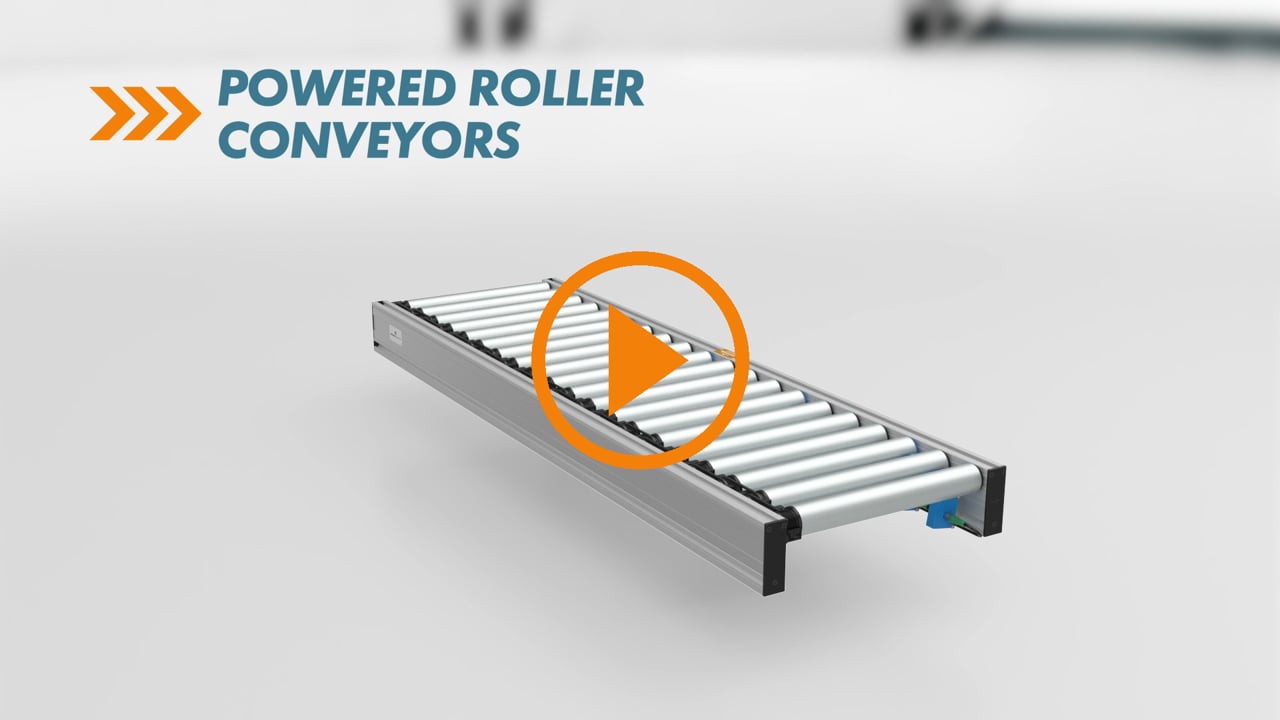

Aligning Powered Roller Conveyor

R5A

Application

Alignment of conveyed units of different sizes on one edge

  • Brushless 24V DC motor
  • Roller material: galvanized steel
  • Conveyor rollers driven by Poly-V belts
  • 10° offset rollers
  • Free T-slots for side guide
Request
Description
Technical data
Measurement
Downloads

Product Information

Drive
  • Brushless 24V DC motor
  • Speed Code / Speed:
    15 = 2 bis 20 m/min (Alternativ)
    20 = 10 bis 28 m/min (Standard)
    35 = 15 bis 50 m/min (Alternativ)
  • Temperature range: from +2°C to +40°C
  • Max. continuous current per motor roller: 2.5 A
  • Average continuous current per motor roller: 1.5 A
  • Conveyor rollers driven by Poly-V belts
  • Roller material: galvanized steel
  • Belt material: Chloroprene with PA tension members
  • Frame material: satin anodized aluminum
  • Max. weight of conveyed material: 50 kg

Control unit

Fully wired, optionally with sensors

Offset per meter

173 mm

Optional roller material

  • Stainless steel
