Timing Belt Conveyor 80

C8T

Application

for transport tasks of all kinds

  • indexing
  • positioning
Configure
Product features
share-icon share-icon
Timing Belt Conveyor 80

Timing Belt Conveyor 80

Timing Belt Conveyor 80 drive options

Timing Belt Conveyor 80 drive options

Timing Belt Conveyor - triple lane

Timing Belt Conveyor - triple lane

Toothed belt conveyor with special belts and cleats

Toothed belt conveyor with special belts and cleats

Timing Belt Conveyor with cleats

Timing Belt Conveyor with cleats

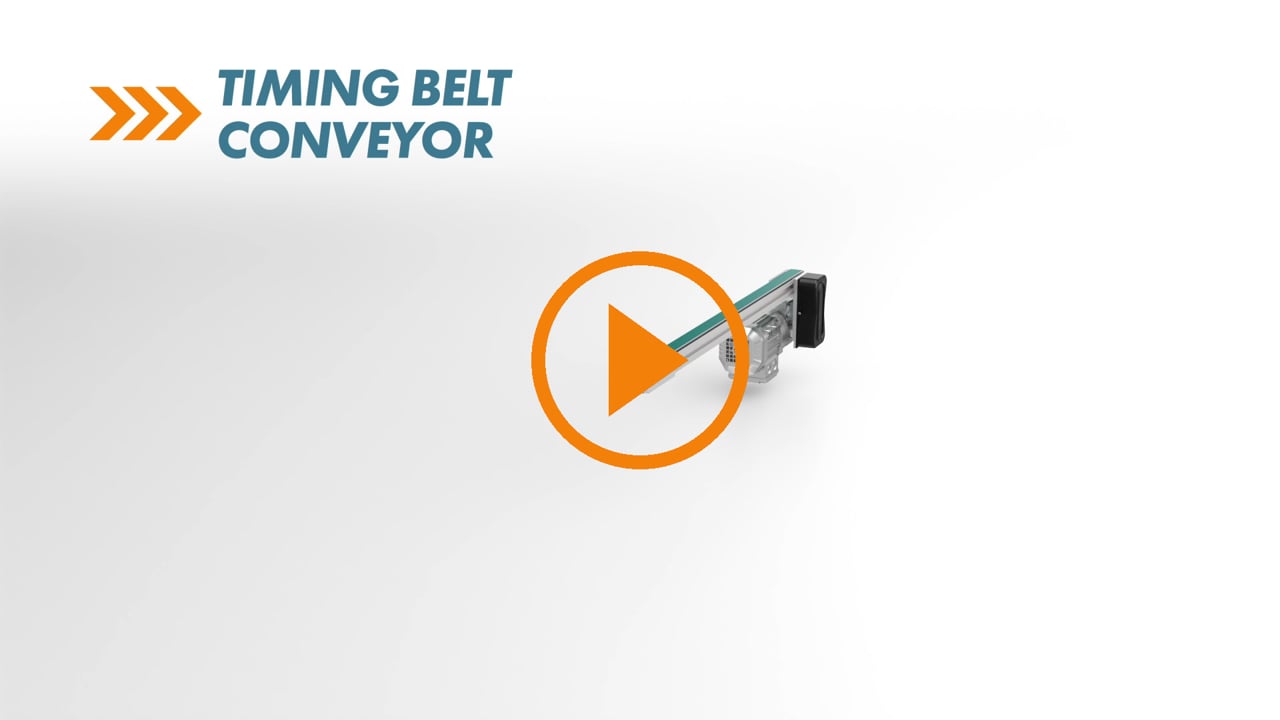

Timing Belt Conveyor | Robotunits

Timing Belt Conveyor | Robotunits

Timing Belt Conveyor 80
Timing Belt Conveyor 80 drive options
Timing Belt Conveyor - triple lane
Toothed belt conveyor with special belts and cleats
Timing Belt Conveyor with cleats
Timing Belt Conveyor | Robotunits
Description
Information
Technical data
Measurement
Downloads
Extrusion deflection
Video
Application solutions

Product Information

Standard belt

  • accumulation (non-adhesive)
  • medium-adhesive
  • adhesive

Special belt

  • with cleats
  • with brass inserts
  • adhesive

Drive options

  • front end timing belt drive
  • timing Belt Lane Without Motor
  • front end timing belt drive, double lane
  • front end timing belt drive, triple lane
  • timing belt lane with splined shaft hub

Speed

front end timing belt drive, double lane

6m/min up to 66m/min

Conveyed material total load

400kg

Drive power 230/400V

0.25kW to 0.37kW

Pulley
  • number of teeth = 32 teeth
  • pitch circle diameter: 101.85mm

Belt Type
  • adhesive for incline transport
  • accumulative
  • etc.

Load types

Force impact

Distributed Distributed
Central Central

Load case

Supported on both sides, distributed Supported on both sides
Clamped on both sides, distributed Clamped on both sides
Clamped on one side, distributed Clamped on one side

Calculation values

Force   F

N

Distance   L

mm

Calculation result

Deflection  f 0.00 mm
Bending stress  σ 0.00 N/mm²
Bending stress must not be greater than 50 N/mm²!
The deflection should not exceed 3 mm.
The calculations do not contain any certainty!

Summary

Profile: Timing Belt Conveyor 80 Force impact: Distributed Extrusion alignment: Horizontal Load case: Supported on both sides Force  F : 0 N Distance  L : 0 mm
