Timing Belt Conveyor 40

C4T

Application

for transport tasks of all kinds

  • indexing
  • positioning
Configure
Product features
share-icon
Timing Belt Conveyor 40

Timing Belt Conveyor 40

Timing Belt Conveyor 40 drive options

Timing Belt Conveyor 40 drive options

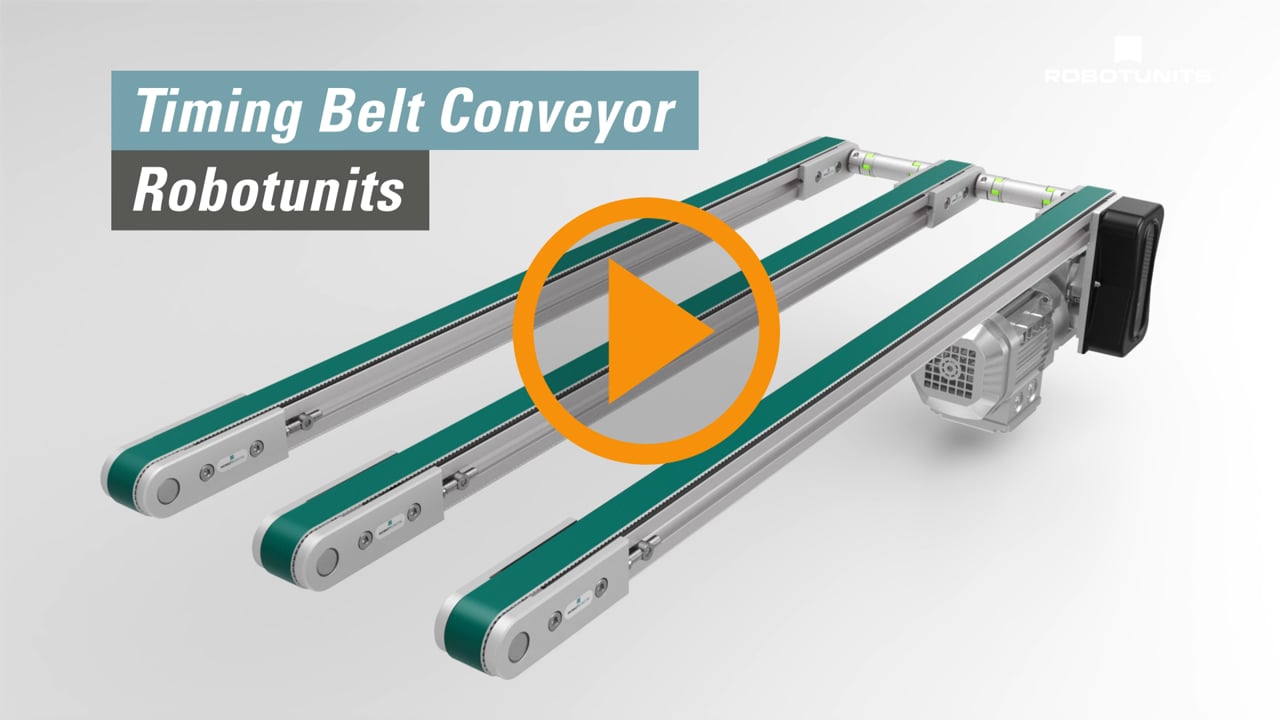

Timing Belt Conveyor - double lane

Timing Belt Conveyor - double lane

Timing Belt Conveyor 40
Timing Belt Conveyor 40 drive options
Timing Belt Conveyor - double lane
Description
Information
Technical data
Measurement
Downloads
Applications

Information

Standard belt

  • accumulation (non-adhesive)
  • medium-adhesive
  • adhesive

Special belt

  • with cleats
  • with brass inserts
  • adhesive

Drive options

  • front end timing belt drive
  • timing belt lane without motor
  • front end timing belt drive, double lane
  • front end timing belt drive, triple lane

Technical data

Speed

front end timing belt drive, double lane

3m/min up to 58m/min

Conveyed material total load

160kg

Drive power 230/400V

0.12kW to 0.37kW

Pulley
  • number of teeth = 30 teeth,
  • pitch circle diameter: 47.75mm

Belt Type
  • adhesive for incline transport
  • accumulative
  • etc.

Measurement

Timing Belt Conveyor 40 Front end timing belt drive Front end timing belt drive Front end timing belt drive, double lane Front end timing belt drive, triple lane Front end timing belt drive and output shaft (left or right) Timing belt lane with output shaft (left or right) Timing belt lane with output shaft on both sides

Downloads

Catalog

Folder

Operating Instructions

Request Form

Applications

AGV Top Modules

AGV Top Modules

Customizable transport solutions
