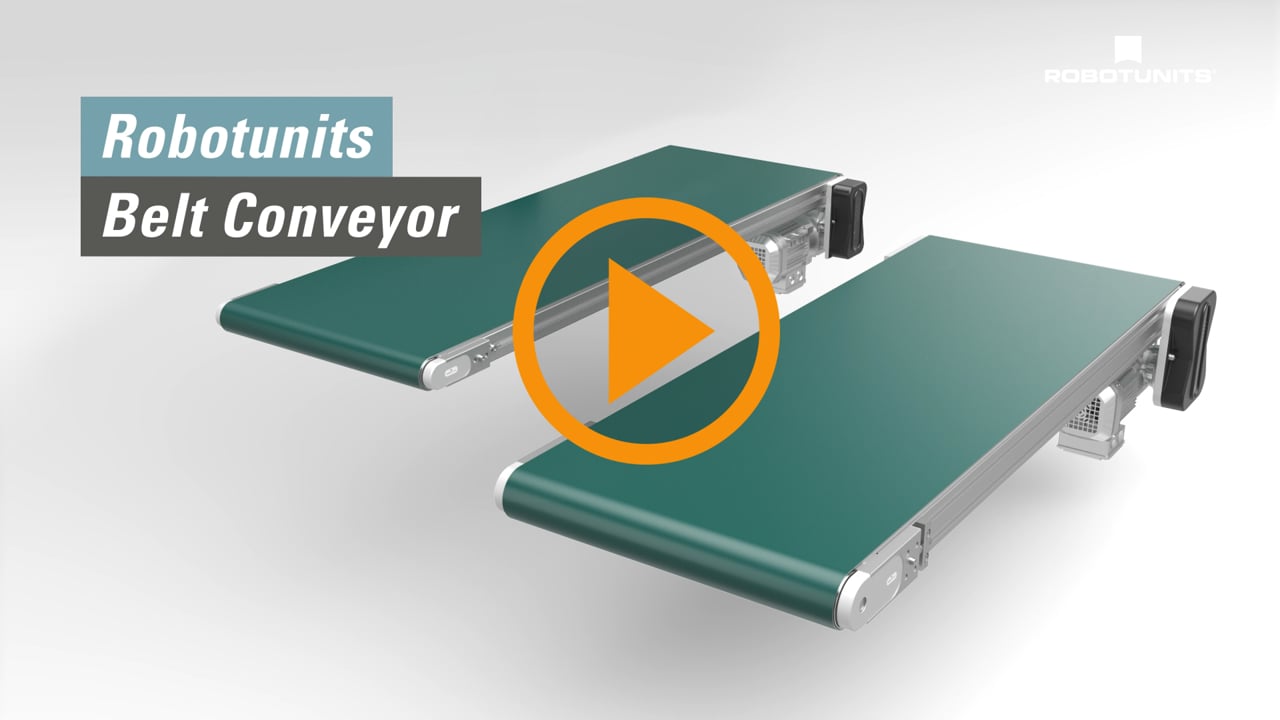

Belt Conveyor 50

C5N

Application

For transport tasks of all kinds

  • Conveyor frame height 50mm
  • Frame widths from 400mm to 600mm
  • Standard lengths up to 12m
Product features
share-icon
Belt Conveyor 50 - Front end timing belt drive
Nose bar deflection and drive options
Drum motor
Incline conveyor with horizontal infeed and discharge section
Belt conveyor with stand and linear motion system for level changes

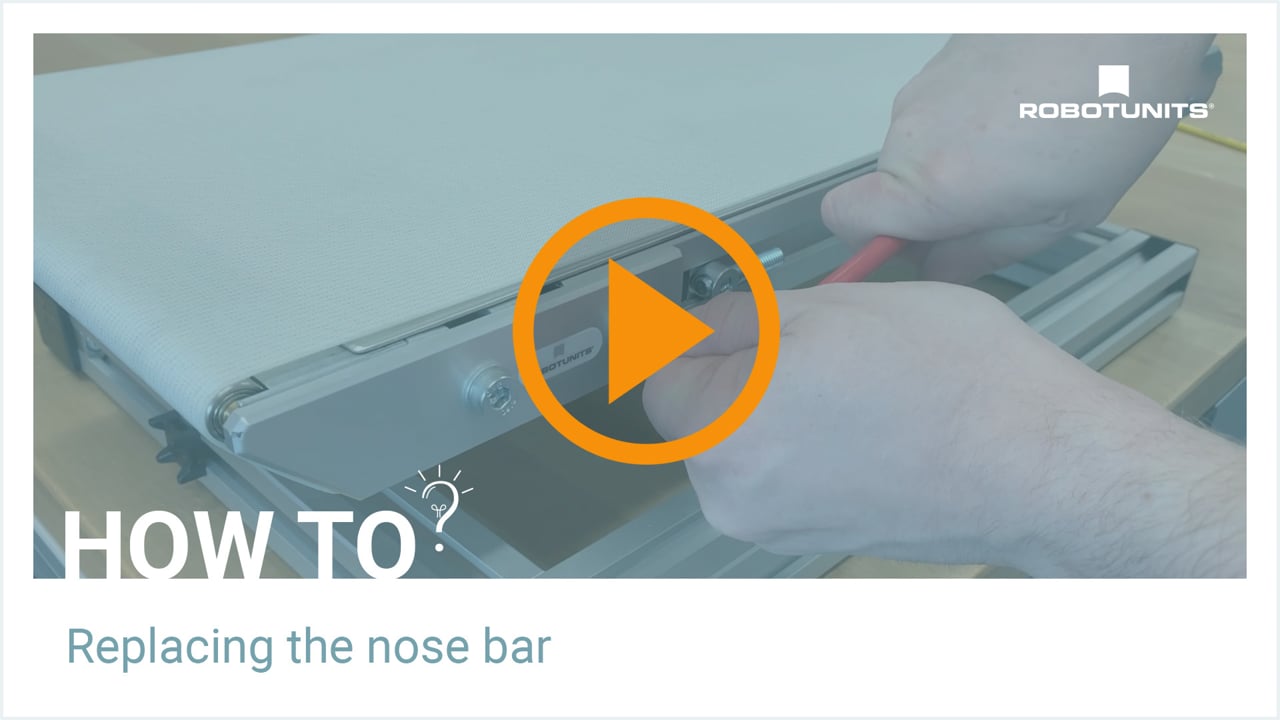

Belt conveyor with nose bar
Belt conveyor with welded-on cleats
Incline belt conveyor with cleats

Information

Design Options

  • Horizontal conveyor
  • Inclined conveyor with horizontal infeed section
  • Inclined conveyor with horizontal discharge section
  • Incline conveyor with horizontal infeed and discharge section

Drive option

  • Front end direct drive
  • Front end timing belt drive

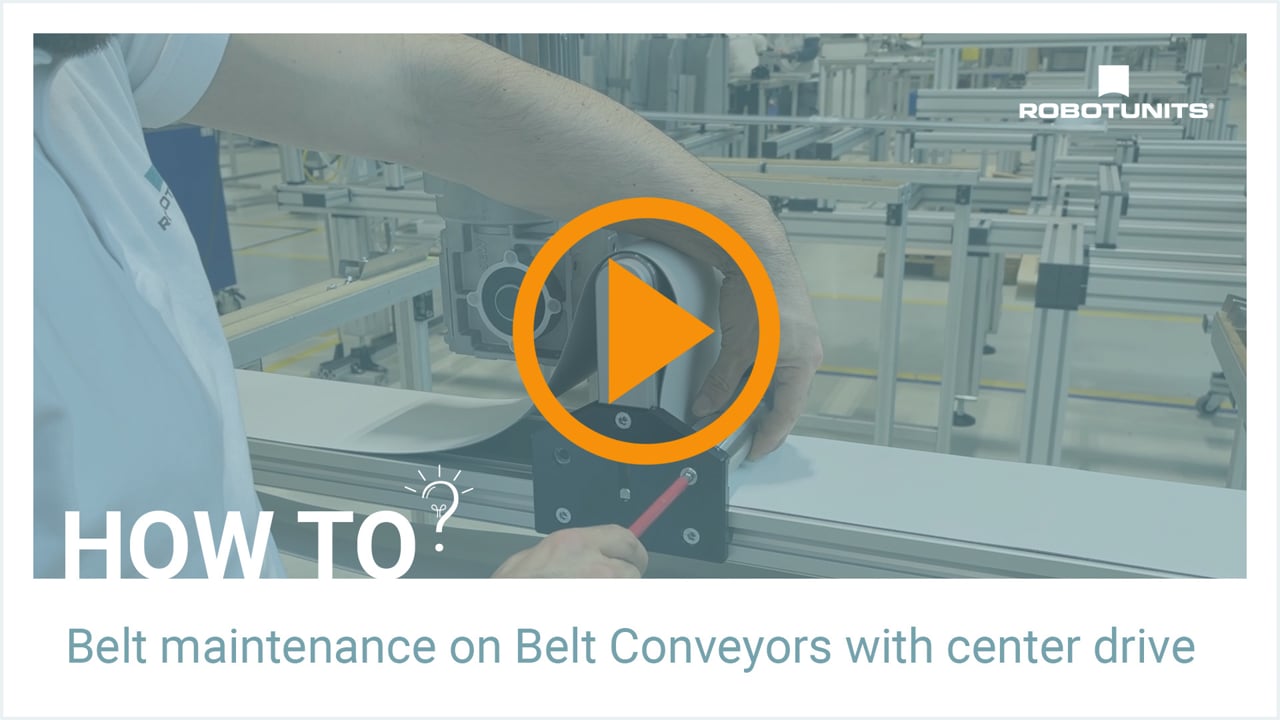

  • Centre drive with timing belt
  • Drum motor

Idler options

  • Roller deflection
  • Nose bar deflection

Technical data

Belt speeds

3m/min up to 67m/min

Conveyed material total load

340kg

Drive power 230/400V

0.12kW to 0.37kW

Drive power 24V

0.13kW

Belt Type

  • Oil resistant
  • Food grade
  • Cleated for incline transport
  • Cut resistant
  • Accumulation
  • Etc.

Temperature range

– 0°C to 40° C

Belt width

Frame width – 20mm
