Extrusion 50x100
PIL 5010
Application
preferably in mechanical engineering, e.g.
- machine frames
- robot frame structures
- workstations
- base support for Linear Motion Units & gantries
- machine guardings
- enclosures
- shelves, racks, trolleys (MRO equipment)
Article
Article
Extrusion 50x100, cut to length, M10 tapped on both ends, 50mm deep
Add to cart
Extrusion 50x100, cut to length, M10 tapped on both ends, 50mm deep
PIL5010SNN
Not available
Extrusion 50x100, stock length 6050mm
Add to cart
Extrusion 50x100, stock length 6050mm
PIL5010NNN
Not available
Extrusion 50x100, 32 units, stock length 6050mm
Add to cart
Extrusion 50x100, 32 units, stock length 6050mm
PIL5010PAC
Not available
Extrusion 50x100, cut to length, M10 tapped on both ends, 50mm deep
PIL5010SNN
Unit price:
Total:
Product Information
Material |
EN AW-6063-T66 clear anodized aluminum |
|---|---|
Section modulus |
Wx: 29.7cm3 |
Section modulus |
Wy: 16.6cm3 |
Geometrical moment of inertia against x |
Ix: 148.5cm4 |
Geometrical moment of inertia against y |
Iy: 41.4cm4 |
Geometrical moment of inertia against torsion |
It: 37.0cm4 |
Cross sectional area |
A: 1559.3mm2 |
Weight/Meter |
4.290 kg |
Load types
Force impact
Distributed
Central
Extrusion alignment

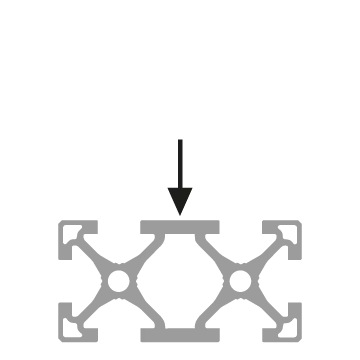

Horizontal

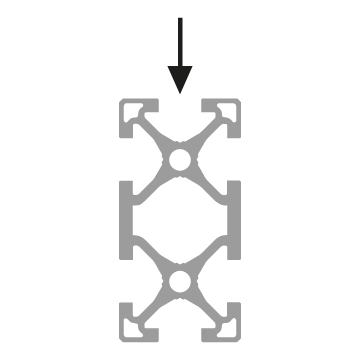

Vertical
Load case
Supported on both sides
Supported on both sides
Supported on both sides, off-center
Clamped on both sides
Clamped on both sides
Clamped on both sides, off-center
Clamped on one side
Clamped on one side
Calculation values
Force F
NDistance L
mmDistance L1
Distance L2
Calculation result
| Deflection f | 0.00 | mm |
| Bending stress σ | 0.00 | N/mm² |
| Profile | Deflection f (mm) | Bending stress σ (N/mm²) |
|---|
Bending stress must not be greater than 50 N/mm²!
The deflection should not exceed 3 mm.
The calculations do not contain any certainty!
Summary
Profile: 50x100 Force impact: Distributed Extrusion alignment: Horizontal Load case: Supported on both sides Force F : 0 N Distance L : 0 mm Distance L1 : 0 mm Distance L2 : 0 mm
