Roller Track

MA_ 456_

Application

for roller conveyors, e.g. for

  • material flow technology
  • manual workstations
  • in- and out-feed conveyors
  • trolleys
  • rolling side guides

Standard length: 250mm

Surface resistance per roller track
RS < 35 MΩ

MAT 4561

MAT 4561

MAT4563

MAT4563

MAT 4561
MAT4563
Article

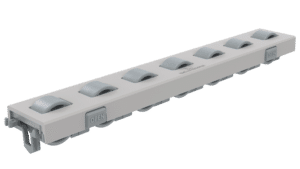

Roller Track Kit

MAT4561

Total:

Roller Track Kit, cut to length, 108 mm

MAL4561SNN0108

Total:

Roller Track Kit, cut to length, 143 mm

MAL4561SNN0143

Total:

Roller Track Kit, cut to length, 178 mm

MAL4561SNN0178

Total:

Roller Track Kit, cut to length, 213 mm

MAL4561SNN0213

Total:

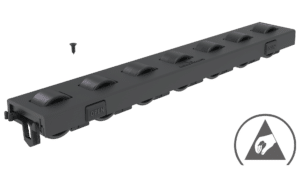

Roller Track ESD Kit

MAT4563

Total:

Roller Track ESD Kit, cut to length, 108 mm

MAL4563SNN0108

Total:

Roller Track ESD Kit, cut to length, 143 mm

MAL4563SNN0143

Total:

Roller Track ESD Kit, cut to length, 178 mm

MAL4563SNN0178

Total:

Roller Track ESD Kit, cut to length, 213 mm

MAL4563SNN0213

Total:
Article

Roller Track Kit

MAT4561

Roller Track Kit, cut to length, 108 mm

MAL4561SNN0108

Roller Track Kit, cut to length, 143 mm

MAL4561SNN0143

Roller Track Kit, cut to length, 178 mm

MAL4561SNN0178

Roller Track Kit, cut to length, 213 mm

MAL4561SNN0213

Roller Track ESD Kit

MAT4563

Roller Track ESD Kit, cut to length, 108 mm

MAL4563SNN0108

Roller Track ESD Kit, cut to length, 143 mm

MAL4563SNN0143

Roller Track ESD Kit, cut to length, 178 mm

MAL4563SNN0178

Roller Track ESD Kit, cut to length, 213 mm

MAL4563SNN0213

Product Information

Note for cutting

  • ideal cutting length in the grid of the rolls (35.5mm)

Scope of delivery

  • 1 base part
  • 1 cover
  • 7 rolls (when cut to size: number of rollers depending on the length of the cut-to-length Roller Track)
  • 1 screw BKS2x07 (only for ESD variant)

Material
  • base part and cover:
    PP gray or PP black (ESD conductive)
  • roller:
    gray POM-C or black POM-C (ESD conductive)

Load
  • per bar: 15kg
  • per linear meter: 60kg

Inclination angle
  • depending on transported goods:
    MAT 4561: 4° to 5°
    MAT 4563: 5° to 6°

Weight
  • MAT 4561: 0.112kg/kit
  • MAT 4561: 0.448kg/m
  • MAT 4563: 0.114kg/kit
  • MAT 4563: 0.456kg/m
