Storage and Feeder Hopper Conveyors
Ingeniously simple solutions from the Robotunits Modular Automation System.
The Storage and Feeder Hopper Conveyors from Robotunits are the modular solution for the precise feeding of bulk materials and dimensionally stable parts. Based on our C4N belt conveyor, flexibly adaptable in height, width and incline - for fast and economical integration into your processes.
Application examples
Based on C4N

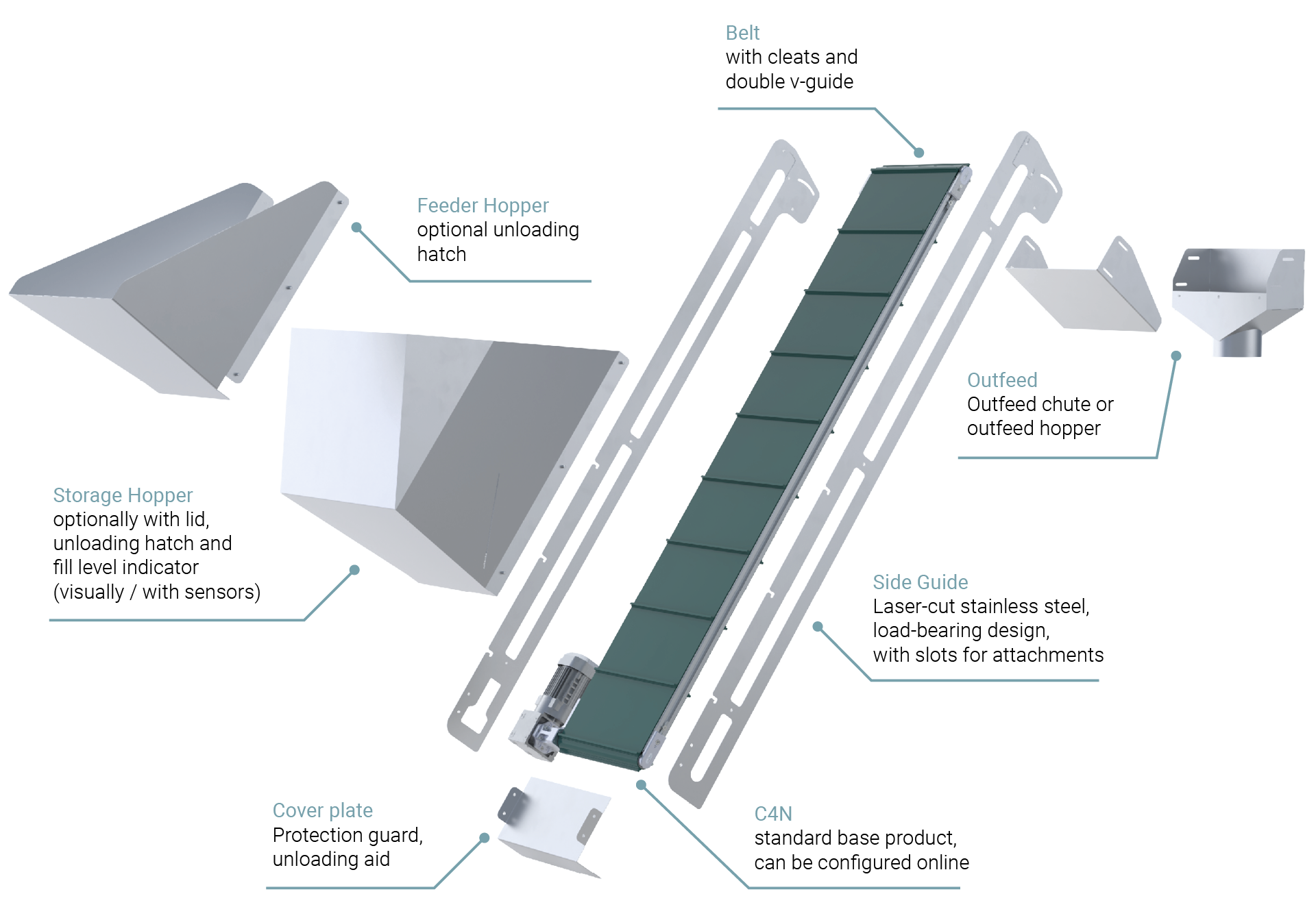

With multifunctional attachments, the tried-and-tested Robotunits C4N Belt Conveyor can be transformed into a Hopper Conveyor with a wide range of possible applications: for example, as an ideal solution for feeding machines with bulk material or as a feeder into vibratory bowl feeders or spiral conveyors.
Thanks to its modular design, the standard conveyor can be individually confi gured in terms of height, width and inclination. Using our Modular Automation System, we create cost-effective solutions for your application: from simple conveyors to plug-and-play solutions, with quick delivery and ready for use.
Facts
- variable in size with multiple equipment options
- fully modular concept
- adjustable in height and incline
Benefits
- tailored to your specific product and application
- cost-effective and short delivery times
- easy adjustment of infeed and outfeed heights
We test with your conveyed material!
Upon request we can test our conveyor with your individual products
Technical data
- Base: C4N Belt Conveyor
- Conveyor frame width: 200 to 400 mm
-
Belt: Transverse cleats, medium adhesive,
abrasion-resistant - Cleat height: 4 to 30 mm
- Double v-guide on the underside of the belt
- Bulk material, solid and dimensionally stable parts
- Inclination angle: 40 - 70°
- Speed: according to C4N specification
- Indexing operation possible
- Speed Controller
- Plug-and-Play
Design Options
Storage Hopper Conveyor with the following equipment:
| Infeed: | hopper with fi ll level indicator sensors, lid and unloading hatch |
| Conveyor: | cover hood made from polycarbonate |
| Outfeed: | outfeed hopper |
| Stand: | fixed with leveling bases |
Example 1
further options possible
Feeder Hopper Conveyor with the following equipment:
| Infeed: | feeder hopper (metal sheets) |
| Outfeed: | outfeed chute |
| Stand: | adjustable in height and incline, on swivel castors |
Example 2
further options possible
Further options
Stand
