Slat Top Conveyor 80

C8S

Application

Conveying tasks of all kinds

  • Designed using specially developed and standardized aluminum extrusions
  • Frame widths from 87 mm to 195 mm
  • Standard lengths up to 15 m
Configure
Product features
share-icon share-icon
Slat Top Conveyor 80

Slat Top Conveyor 80

Product transfer - parallel lane change with curved Side Guide

Product transfer - parallel lane change with curved Side Guide

Product transfer - parallel lane change with curved Side Guide

Product transfer - parallel lane change with curved Side Guide

Optimal adaptation to material flow: compact Conveyor Technology with particularly tight radii

Optimal adaptation to material flow: compact Conveyor Technology with particularly tight radii

Energy-efficient and reliable over long tracks with a single drive chain slack for optimal tension of the slat top chain

Energy-efficient and reliable over long tracks with a single drive chain slack for optimal tension of the slat top chain

Slat Top Conveyor 80
Product transfer - parallel lane change with curved Side Guide
Product transfer - parallel lane change with curved Side Guide
Optimal adaptation to material flow: compact Conveyor Technology with particularly tight radii
Energy-efficient and reliable over long tracks with a single drive chain slack for optimal tension of the slat top chain
Description
Information
Technical data

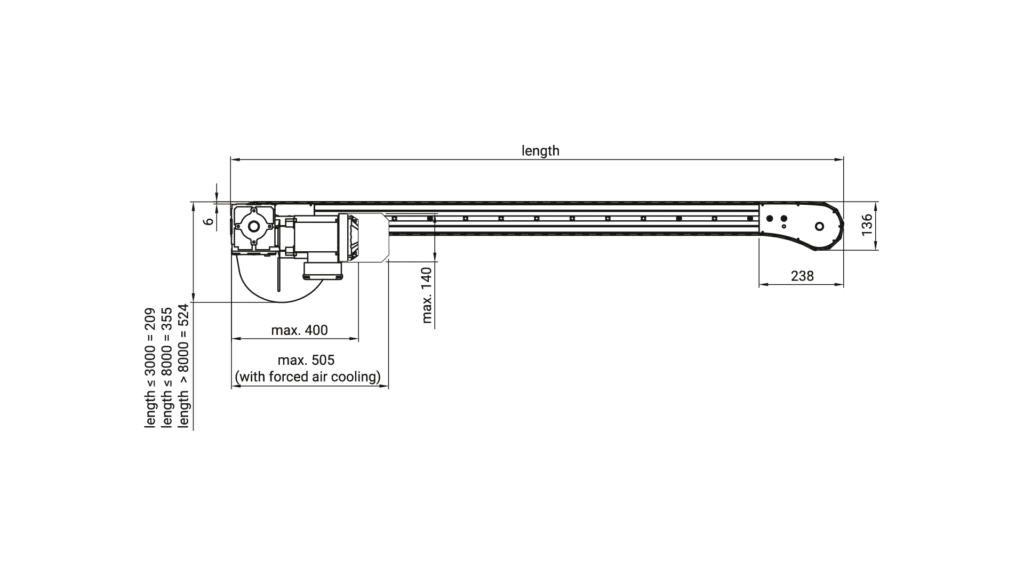

Measurement
Downloads
Extrusion deflection
Application solutions

Product Information

Design options side view

  • horizontal conveyor
  • inclined conveyor with horizontal infeed section
  • inclined conveyor with horizontal discharge section
  • incline conveyor with horizontal infeed and discharge section

Design options top view

  • L Form
  • U Form
  • US Form
  • S Form

Drive options

  • front end direct drive, left
  • front end direct drive, right

Speed

5 bis 30 m/min

Drive power

depending on conveyor speed and load ranging from 0.25 kW to 0.37 kW (230/400 V; 50/60 Hz; IP54)

Max. total load of conveyed material

150 kg

Temperature range

-20°C to +40°C

Chain type

Standard application, adhesive and thus suitable for incline transport, suitable for accumulation operation, etc.

Center radii (chain)

Frame width 87 mm = 200 mm
Frame width 124 mm = 200 mm
Frame width 195 mm = 400 mm

Load types

Force impact

Distributed Distributed
Central Central

Load case

Supported on both sides, distributed Supported on both sides
Clamped on both sides, distributed Clamped on both sides
Clamped on one side, distributed Clamped on one side

Calculation values

Force   F

N

Distance   L

mm

Calculation result

Deflection  f 0.00 mm
Bending stress  σ 0.00 N/mm²
Bending stress must not be greater than 50 N/mm²!
The deflection should not exceed 3 mm.
The calculations do not contain any certainty!

Summary

Profile: Slat Top Conveyor 80 Force impact: Distributed Extrusion alignment: Horizontal Load case: Supported on both sides Force  F : 0 N Distance  L : 0 mm
