C8N type: A 800x2200

Article

Belt Conveyor
Conveying direction: Pulling
Frame width[mm]: 800
Length[mm]: 2200
Drive / idler pulley diameter[mm]: 85/85

Manufacturing number: CBTAAN
Dimensions W x L [mm]: 780×4482.7
Belt color: White
Characteristics: Non-adhesive, Horizontal
properties: Easy release property, Longitudinal flexibility and transversal stability, No stick-slip effect
Food approval: FDA, EU

Speed[m/min]: 14.16
Drive : SEW Spiroplan gear motor WAF20DRN71MS4
230/460V, 60Hz IP54
P = 0.25 kW. i = 32.5
Aluminum not painted
Terminal box position [°]: 180
Motor orientation[°]: 0

Temperature control: No

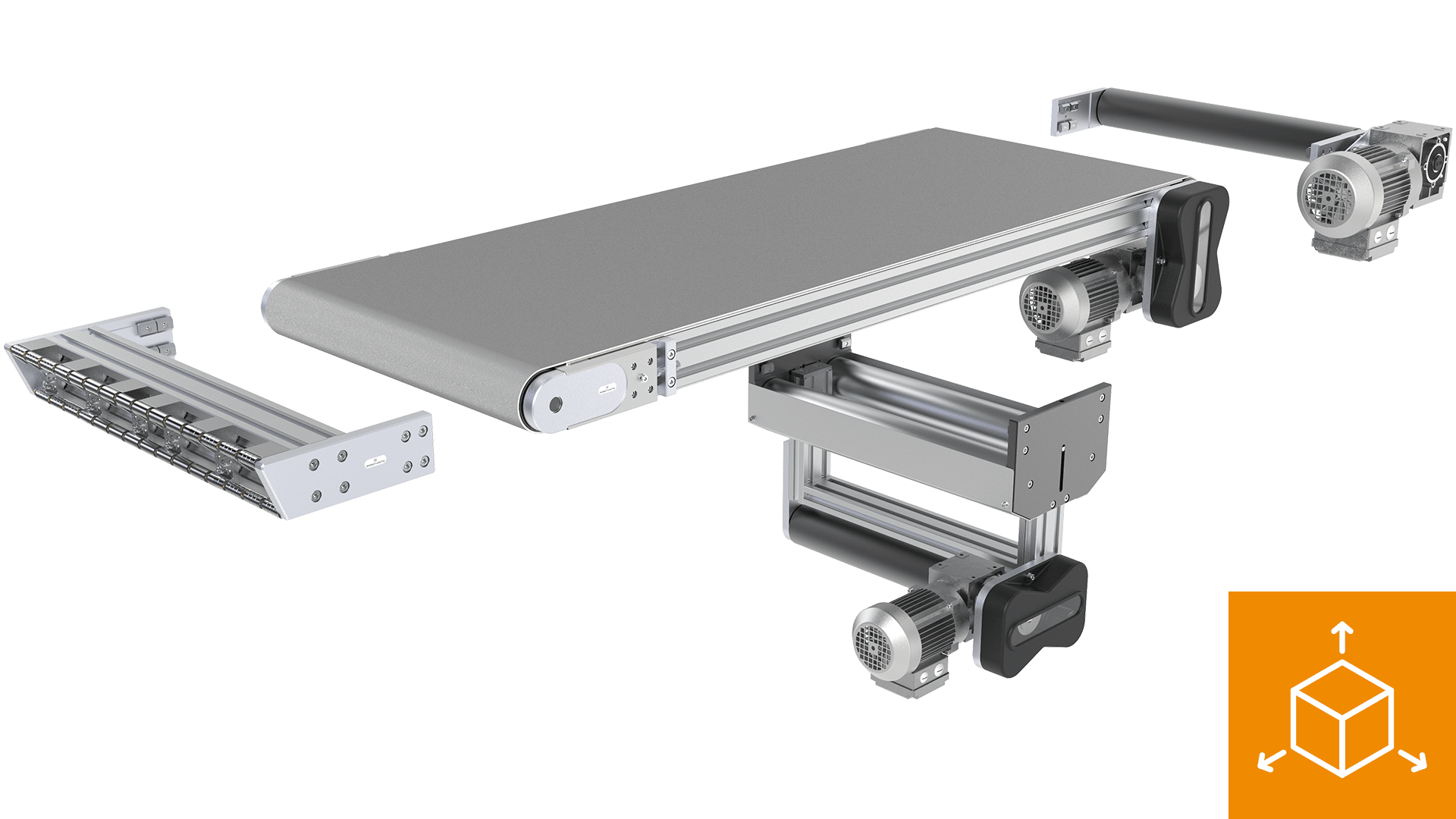

Motor configuration: End drive with timing belt left

Load[kg]: 20
Accumulating operation: No
Slider bed: stainless steel
Side guide : adjustable

Completely assembled and tested
