C4T type: A 3000

Add to cart

Share product

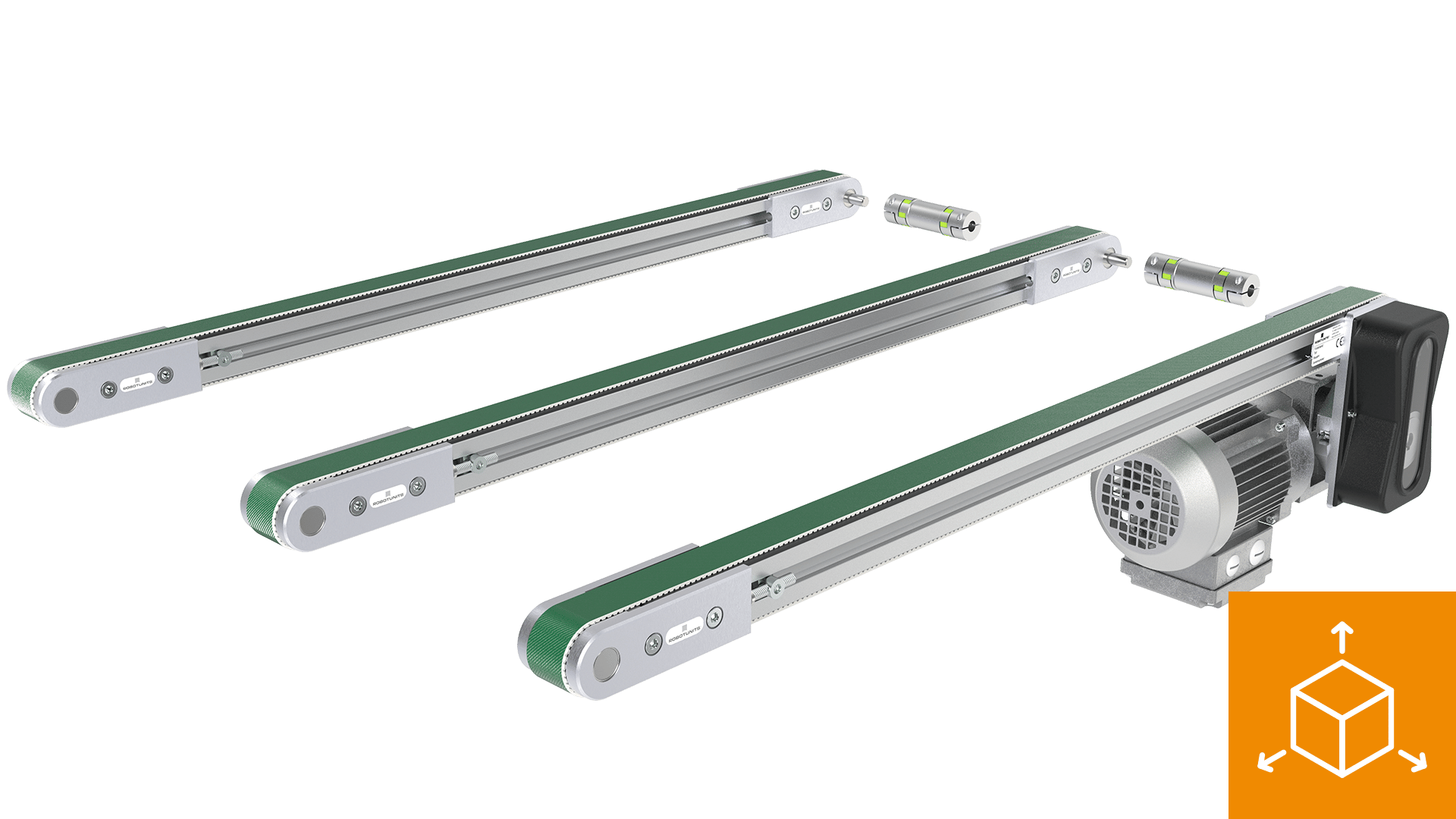

Timing Belt Conveyor
Conveying direction: Pulling
Number of lanes: 1
Length[mm]: 3000

Manufacturing number: COL4101SNN
Transport belt type: 32 ATG5/K6/PAZ/”V”
Dimensions W x L [mm]: 32×6045
Characteristics: Medium adhesive, White

Speed[m/min]: 19.17
Drive : SEW Spiroplan gear motor WA20DRN71M4
230/460V, 60Hz IP54
P = 0.37 kW. i = 24.5
Aluminum not painted
Terminal box position [°]: 270
Motor orientation[°]: 0

Temperature control: No
Motor configuration: End drive with timing belt left

Load[kg]: 20
Accumulating operation: No
Slider bed: Plastic slider

Side guide : without
We recommend a starting and braking ramp for a longer service life.

Completely assembled and tested
