Slat Top Conveyors

Efficient conveyor technology for complex conveyor layouts

Robotunits' Slat Top Conveyors are built for flexibility – easily adapting to your layout and covering long distances with a single drive. Durable, dependable, and low-maintenance, they deliver smooth, efficient, performance for industrial and logistics applications.

Request now
Slat Top Conveyors
Overview
Application example
Facts & Benefits
Technical data
Design and drive options
Downloads
Contact us
Slat Top Conveyors

Application example

Slat Top Conveyors

Reliable, flexible and efficient

Discover the flexible and reliable solution for transporting materials over longer distances: Our Slat Top Conveyors are designed for complex layouts with multiple curves, making them ideal for industries such as packaging, logistics, food processing, waste management, and automotive manufacturing. Engineered for efficiency, durability, and minimal maintenance, these conveyors integrate seamlessly into your production and logistics systems. Their robust construction and versatile design ensure smooth workflows, greater productivity, and sustainable process optimization across a wide range of applications.

Facts

  • Compact conveyor technology with extremely tight curve radii
  • Long distances with just one drive unit
  • The pulley is flush with the frame

Benefits

  • Optimal customization for spatial and material flow conditions
  • Energy efficiency
  • Easy transfer of products

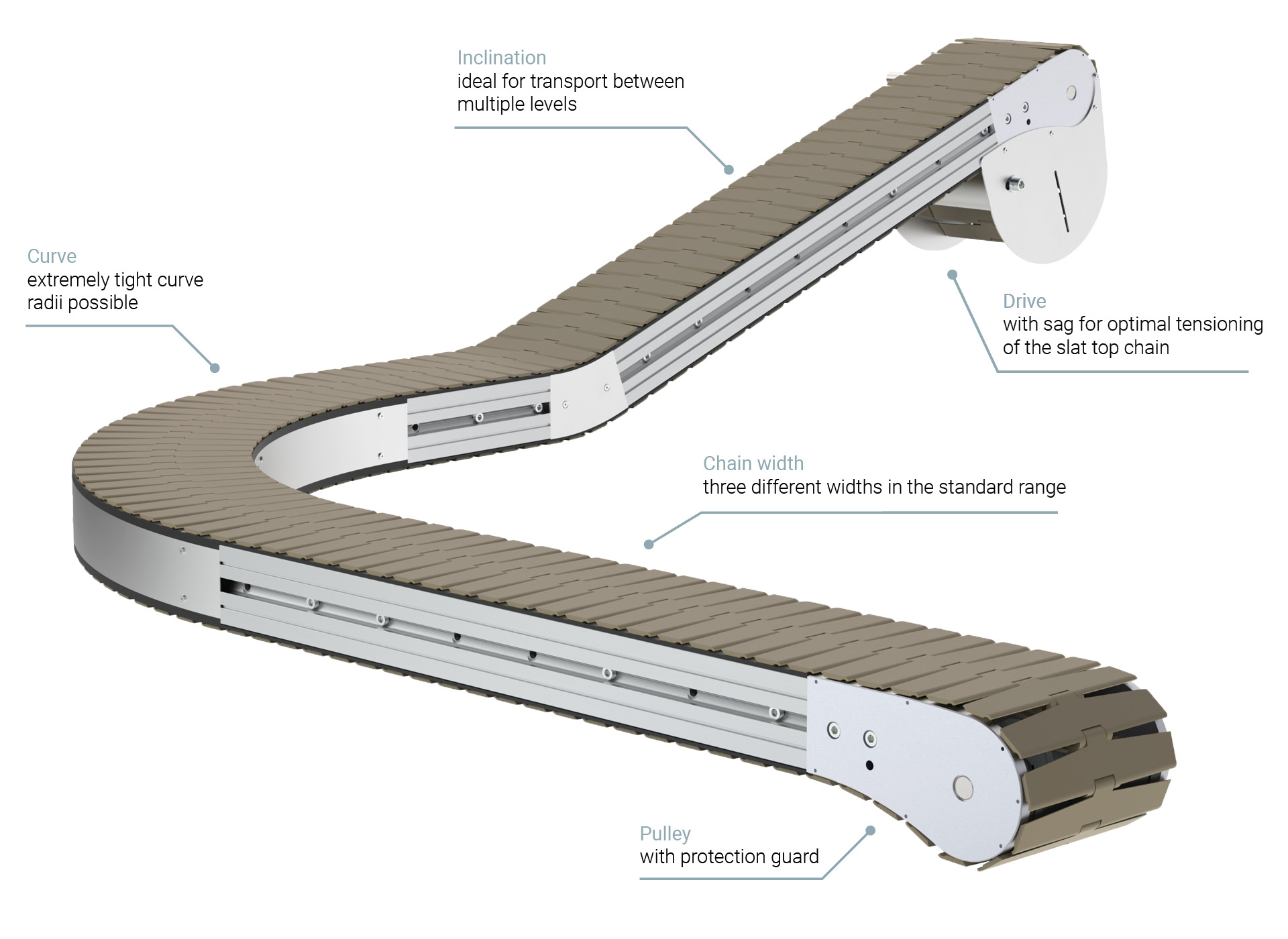

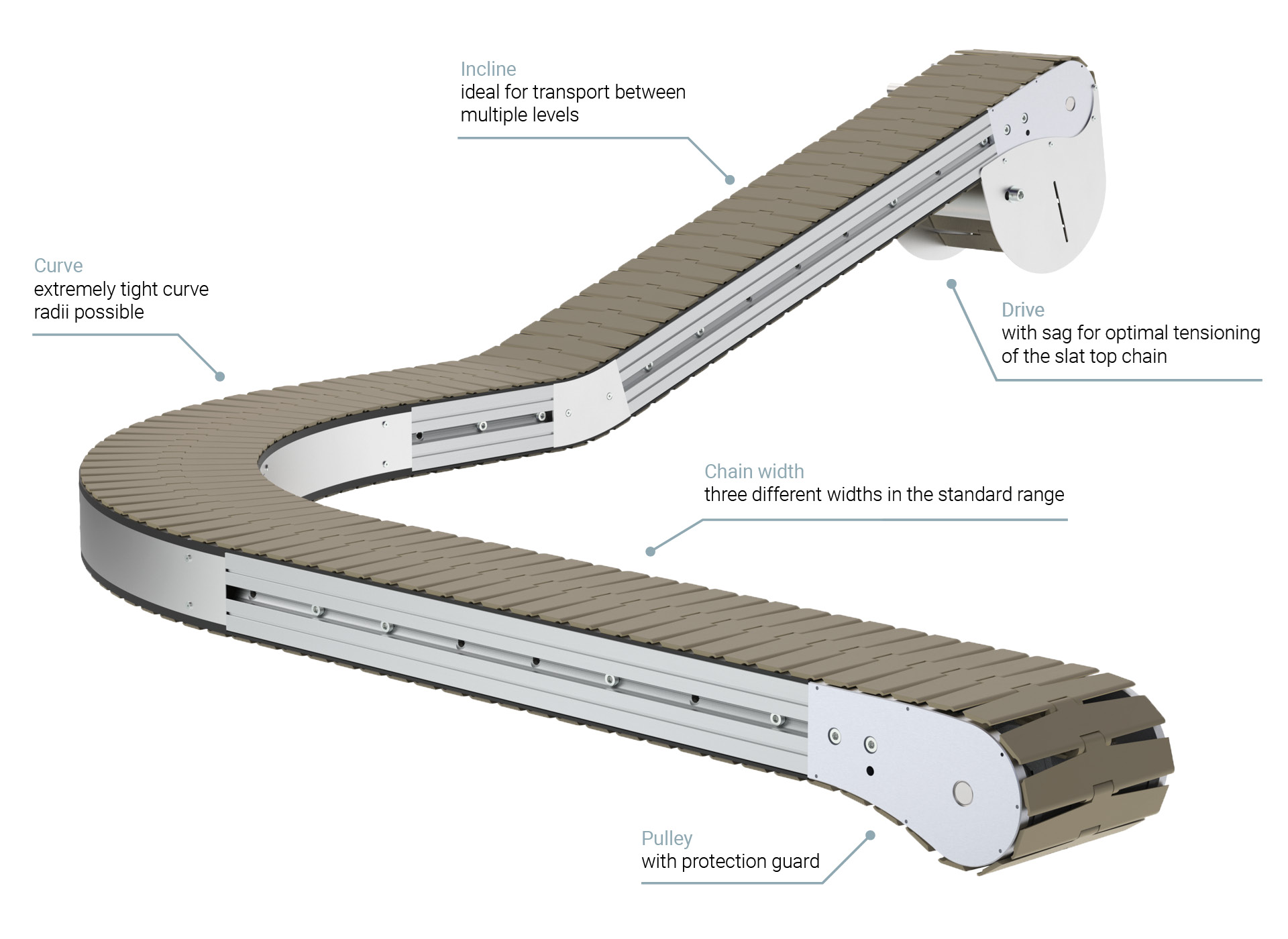

Detailed illustration of a Slat Top Conveyor from Robotunits with its main components labeled, including curve, drive, attachment options, incline, chain widths and technical data. The image shows the design of an efficient and durable conveyor that can be used in various industries, such as logistics, automotive automation and the food industry, and is aimed at professionals in plant design and automation.
CE Icon

Technical data

* depending on the conveyor layout
Frame width:87 mm, 124 mm, 195 mm
Chain width:82,6 mm, 114,3 mm, 190,5 mm
Min. curve radius:Chain width 82,6 mm = 200 mm,
Chain width 114,3 mm = 200 mm,
Chain width 190,5 mm = 610 mm
Speed:5 m/min to 30 m/min
Max. conveyor length:approx. 15,000 mm *
Max. conveyor load:approx. 150 kg *

Alternative widths and speeds available upon request.

Slat Top Conveyors

Design and drive options

Special extrusion:
  • Mounting options for sensors, side guides and stands
Drive:
  • 230/400V motor
  • Chain sag for optimal tensioning of the slat top chain
Pulley:
  • Special pulley for optimal movement of the slat top chain
  • Flush with the frame
Three frame widths
  • The optimal frame width for every application, depending on the weight, speed, incline, conveyor layout, etc.
Technische Zeichnung eines Förderrahmenprofils mit einer Rahmenbreite von 87 mm, dargestellt in blauer Kontur, zeigt die baulichen Eigenschaften für die Integration in Scharnierkettenförderer. Das Profil ist für den Einsatz je nach Gewicht, Geschwindigkeit, Steigung und Streckenlayout ausgelegt und bildet die Basis für flexible Förderlösungen.
Frame width 87 mm
Technische Zeichnung eines Förderrahmenprofils mit einer Rahmenbreite von 124 mm, dargestellt in blauer Kontur, geeignet für die modulare Integration in Scharnierkettenförderer mit verschiedenen Anpassungsoptionen für Gewicht, Geschwindigkeit, Steigung und Streckenlayout.
Frame width 124 mm
Technische Zeichnung eines Förderrahmenprofils mit einer Rahmenbreite von 195 mm, geeignet für die modulare Integration in Scharnierkettenförderer für verschiedene Anwendungen je nach Gewicht, Geschwindigkeit und Streckenlayout.
Frame width 195 mm
Slat top chain:
  • Various chain widths
  • Extremely tight curve radii possible
  • Chain links are individually interchangeable
Förderkette mit einer Breite von 82,6 mm und einem Kurvenradius von 200 mm, speziell für den Einsatz in engen Kurven bei Scharnierkettenförderern von Robotunits.
Chain width 82.6 mm
Curve radius 200 mm
Förderkette mit einer Kettenbreite von 114,3 mm, geeignet für den Einsatz in Kurven mit einem Radius von 200 mm, speziell für die schnelle und zuverlässige Materialförderung in engen Radien.
Chain width 114.3 mm
Curve radius 200 mm
Förderkette mit einer Breite von 190,5 mm, geeignet für den Kurvenradius von 610 mm, speziell für den Einsatz in engen Radien bei Scharnierkettenförderern von Robotunits.
Chain width 190.5 mm
Curve radius 610 mm

Turnkey Conveyor Solutions

Our Slat Top Conveyors are extremely versatile: they can be used in both indexing and accumulation operation or in other turnkey solutions that have already proven successful for our belt, modular belt and timing belt conveyors.
This enables us to offer you customized solutions for a wide range of conveying requirements and to provide you with efficient and versatile conveyor technology that is tailored to your individual requirements.

Slat Top Conveyors

Downloads

Overview Downloads & Video
Robotunits_Slat Top Conveyors
