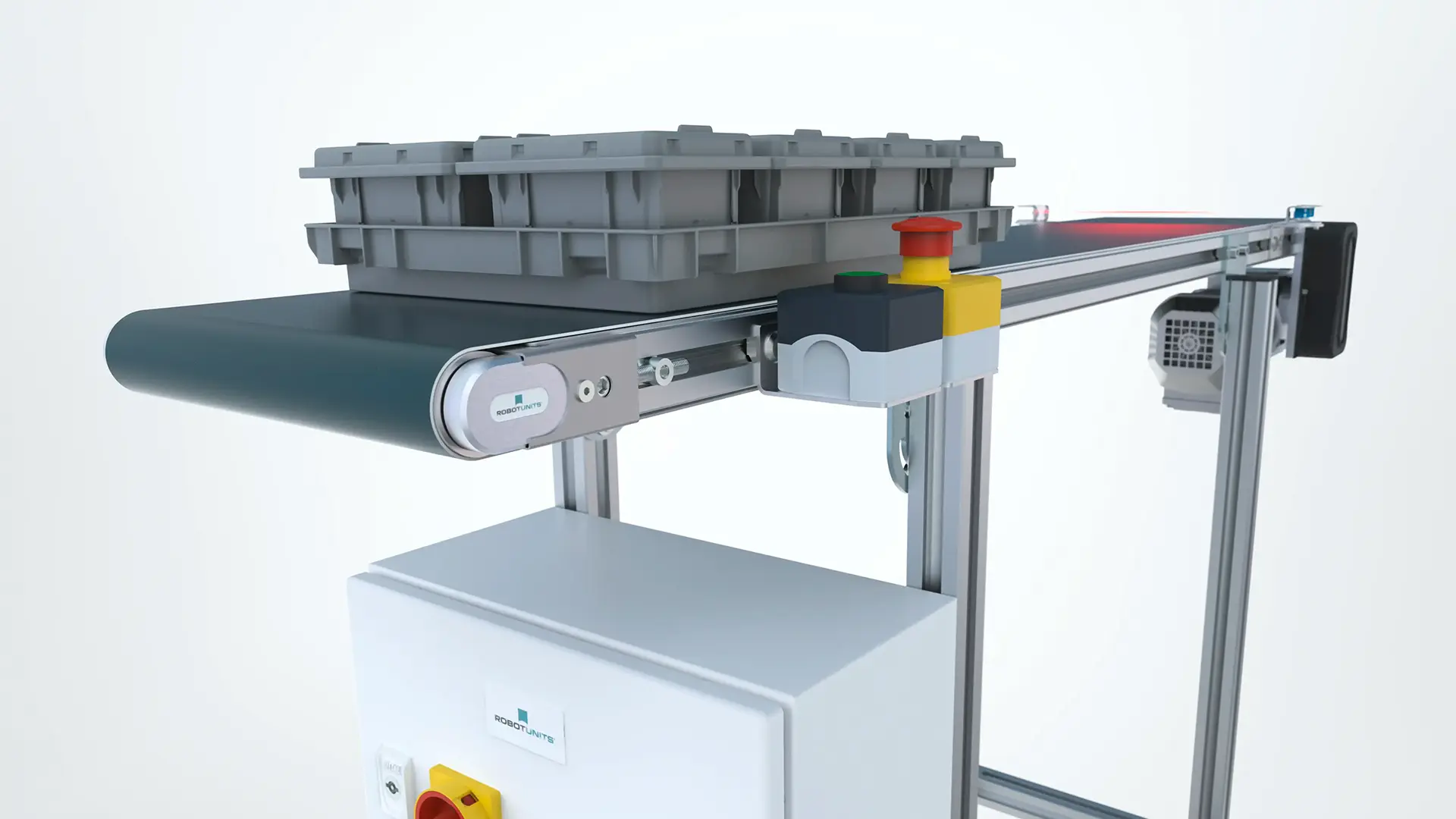

Turnkey Conveyor Solutions

The Robotunits conveyor technology for start/stop and indexing operation

Belt, timing belt, and modular belt conveyors as turnkey conveyor solutions according to your specifications—complete with control system and control cabinet for immediate plug-and-play use.

Turnkey Conveyor Solutions
Turnkey Conveyor Solutions

Application example

Person legt manuell per Startsensor Kleinteilebehälter auf ein Modulbandförderer auf welches mit einer Cobot-Station verbunden ist.

Verschiedene Kleinteileboxen mit TrayTote System

Learn more!

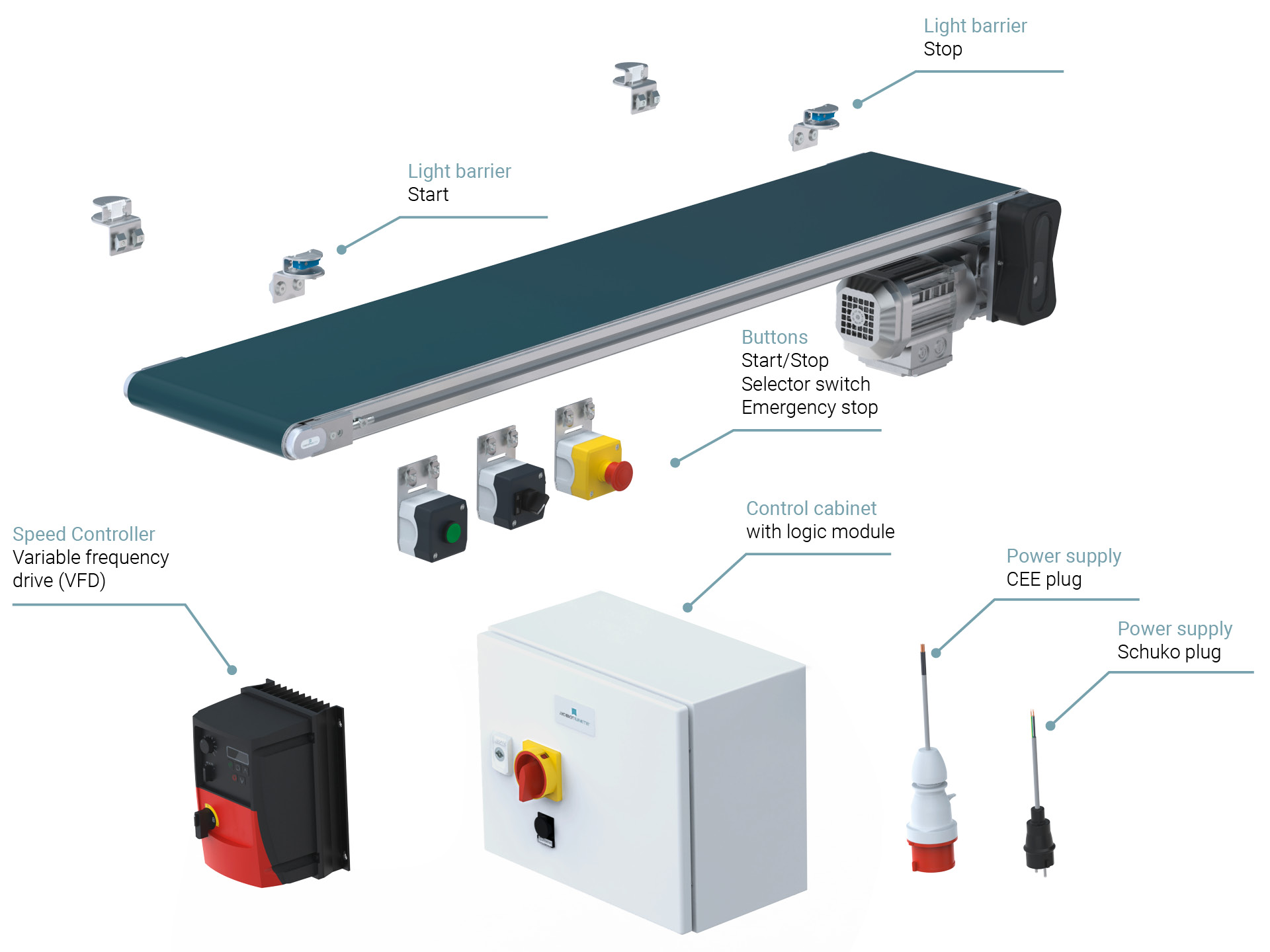

Freely selectable control:
Start/stop and indexing operation

Learn more!

Control cabinet with logic module.
Conveyor belt as a ready-to-use plug-and-play solution.

Learn more!

Cobot-Station Komponenten im Detail: Aluminiumpfrofile, Profilscharniere, Profilhandgriffe von RobotunitsCobot-Station

Learn more!

Modulbandförderer Kurve mit Kopfantrieb

Modular Belt Conveyor

Learn more!

Turnkey Conveyor Solutions

Start/stop and indexing operation

Belt conveyors, modular belt conveyors and timing belt conveyors each offer specific advantages for material transport. Our Belt Conveyors are customizable in terms of dimensions, belt properties and drive configurations. The robust Modular Belt Conveyors offer maximum design freedom thanks to the multiple possible combinations of straight sections, curves and inclines. Timing Belt
Conveyors ensure precise positioning and high process reliability. All conveyors can be equipped with sensors, light barriers and buttons for indexing or start/stop operation.
Robotunits offer plug-and-play solutions, including a control system and control cabinet that are optimized to match your work processes. Your advantage: install, plug in and start manufacturing!

Properties/Applications
  • Free choice of dimensions, belt properties and idler options
  • Front end timing belt drive, front end direct drive, center drive
  • Incline conveyor tasks
Properties/Applications
  • Tracking strip for absorbing lateral forces
  • Multiple lane options available
  • High process reliability
  • Indexing and positioning tasks
Properties/Applications
  • Multiple combinations of straight, curved and inclined sections possible
  • Heavy loads
  • Accumulating operation
  • Incline conveyor tasks
Turnkey Conveyor Solutions

Start/stop and indexing operation

Selector switch

  • Start and stop via selector switch

Stop sensor

  • Conveyor runs in continuous mode
  • Stop triggered via an interrupted light barrier at the end of the conveyor
  • Start triggered via an uninterruptedlight barrier at the end of the conveyor

Start sensor and stop sensor

  • Start triggered via light barrier at the start of the conveyor
  • Stop triggered via light barrier at the end of the conveyor
  • No start if the light barrier is interrupted at the end of the conveyor
Schlüsselfertige Förderlösung - Förderband mit Startsensor und Stoppsensor

Start button and stop sensor

  • Start via manual start button
  • Stop is triggered via the light barrier at the end
  • No start if the light barrier is interrupted at the end of the conveyor
Schlüsselfertige Förderlösung - Förderband mit Starttaster und Stoppsensor

Start sensor with time control

  • Start via light barrier – belt run time tracking is triggered
  • Product is transferred up until the mechanical stop
  • Automatic stop after preset belt run time ends
Schlüsselfertige Förderlösung - Förderband mit Startsensor mit Zeitsteuerung

Customer signal

  • Start via customer signal
  • Product is received, transported and transferred
  • Stop via customer signal
Schlüsselfertige Förderlösung - Förderband mit Kundensignal

Indexing operation

  • Start is triggered via a button, a light barrier or a customer signal
Taktbetrieb Varianten: Förderband mit Start durch einen Taster, eine Lichtschranke oder ein Kundensignal
  • Stop is triggered via a light barrier
    or a customer signal
Taktbetrieb Varianten: Stopp durch eine Lichtschranke oder ein Kundensignal
  • Conveyor unloading is triggered via a button or a customer signal
  • Emergency stop is optional
