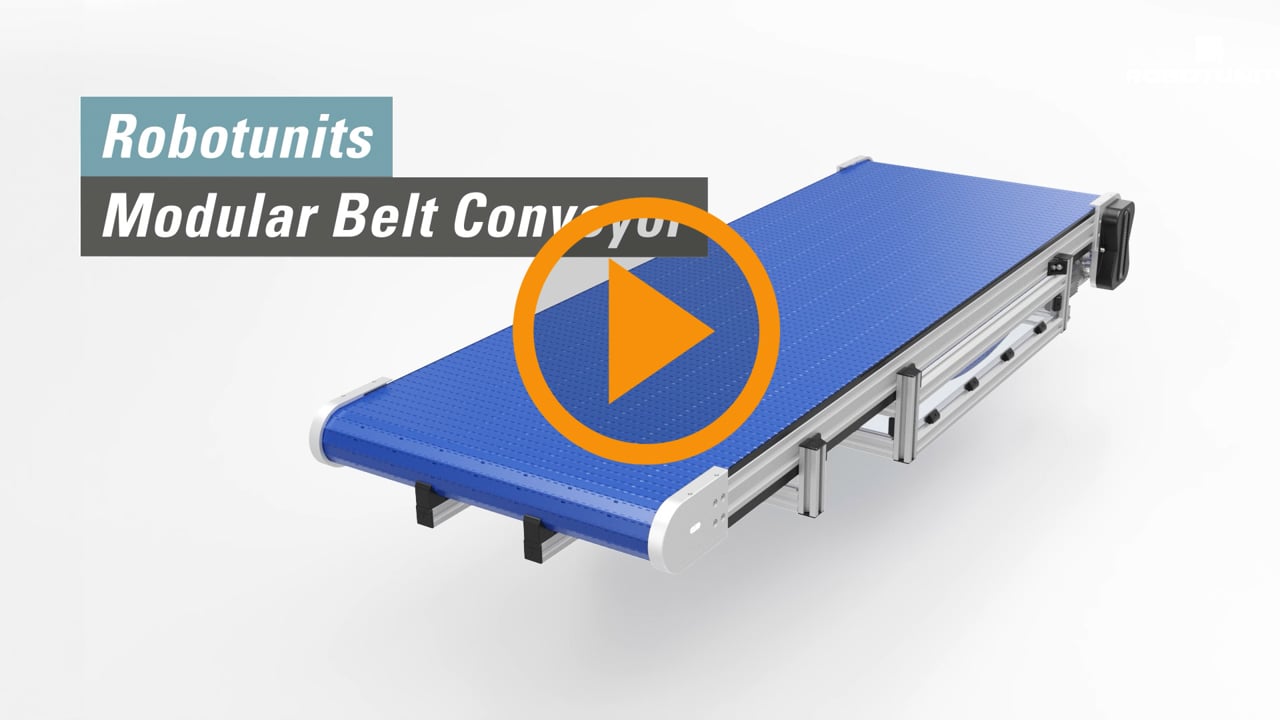

Straight Modular Belt Conveyor

C8M

Application

for transport tasks of all kinds

  • accumulating operation
  • incline conveyor tasks
  • transport of heavy loads
  • convey cut parts
Configure
Product features
share-icon
Straight Modular Belt Conveyor - front end timing belt drive

Straight Modular Belt Conveyor - front end timing belt drive

C8M Modular Belt Conveyor Drive Options

C8M Modular Belt Conveyor Drive Options

Modular Belt Conveyor - nose bar deflection

Modular Belt Conveyor - nose bar deflection

Modular Belt Conveyor - curved incline conveyor

Modular Belt Conveyor - curved incline conveyor

Modular Belt Conveyor - Incline conveyor with horizontal infeed and discharge section

Modular Belt Conveyor - Incline conveyor with horizontal infeed and discharge section

Straight Modular Belt Conveyor - front end timing belt drive
C8M Modular Belt Conveyor Drive Options
Modular Belt Conveyor - nose bar deflection
Modular Belt Conveyor - curved incline conveyor
Modular Belt Conveyor - Incline conveyor with horizontal infeed and discharge section
Article
Information
Technical data
Measurement
Downloads

Information

Belt design

  • custom coated
  • sideguards
  • griptop
  • cleats
  • traverse cleats

Design options

  • horizontal conveyor
  • inclined conveyor with horizontal infeed section
  • inclined conveyor with horizontal discharge section
  • incline conveyor with horizontal infeed and discharge section

Drive options

  • front end direct drive
  • front end timing belt drive

Modular belt design

  • modular belt open
  • modular belt closed

Technical data

Belt speeds

modular belt design

6 bis 50m/min

Conveyed material total load

750kg

Drive power 230/400V

0.25kW bis 0.55kW

Modular belt pitch

1 inch

Measurement

Straight Modular Belt Conveyor Front End Timing Belt Drive Front End Direct Drive
