Storage and Feeder Hopper Conveyors

Ingeniously simple solutions from the Robotunits Modular Automation System.

The Storage and Feeder Hopper Conveyors from Robotunits are the modular solution for the precise feeding of bulk materials and dimensionally stable parts. Based on our C4N belt conveyor, flexibly adaptable in height, width and incline - for fast and economical integration into your processes.

Ready for dispatch after 10 working days!

Request now
Storage and Feeder Hopper Conveyors
Overview
Application examples
Based on C4N
Design Options
Stand
Downloads
Contact us
Storage and Feeder Hopper Conveyors

Application examples

Previous
Next
Storage and Feeder Hopper Conveyors

Based on C4N

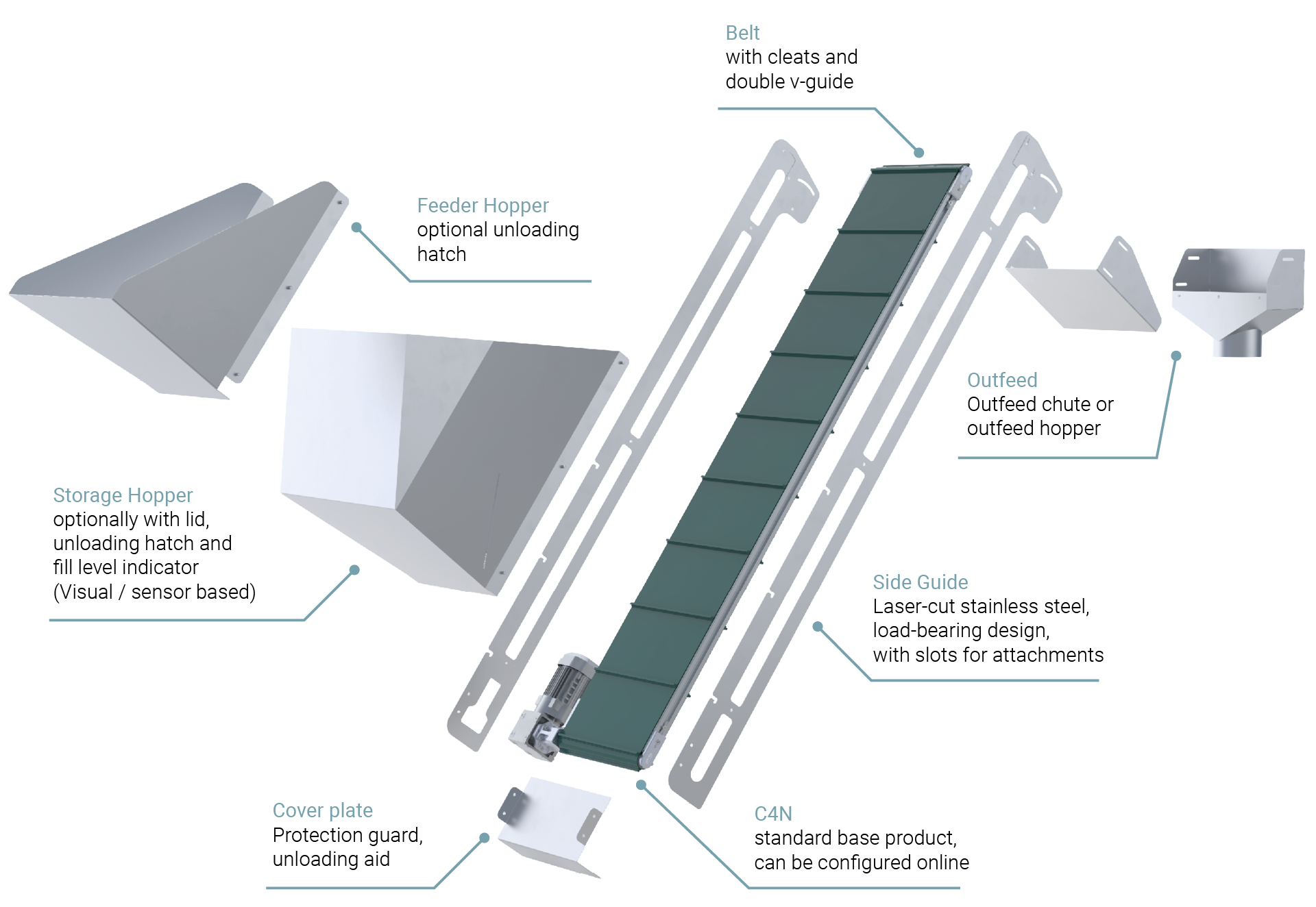

With multifunctional attachments, the tried-and-tested Robotunits C4N Belt Conveyor can be transformed into a Hopper Conveyor with a wide range of possible applications: for example, as an ideal solution for feeding machines with bulk material or as a feeder into vibratory bowl feeders or spiral conveyors.

Thanks to its modular design, the standard conveyor can be individually confi gured in terms of height, width and inclination. Using our Modular Automation System, we create cost-effective solutions for your application: from simple conveyors to plug-and-play solutions, with quick delivery and ready for use.

Facts

  • variable in size with multiple equipment options
  • fully modular concept
  • adjustable in height and incline

Benefits

  • tailored to your specific product and application
  • cost-effective and short delivery times
  • easy adjustment of infeed and outfeed heights

We test with your conveyed material!

Upon request we can test our conveyor with your individual products

Technical data

  • Base: C4N Belt Conveyor
  • Conveyor frame width: 200 to 400 mm
  • Belt: Transverse cleats, medium adhesive,
    abrasion-resistant
  • Cleat height: 4 to 30 mm
  • Double v-guide on the underside of the belt
  • Bulk material, solid and dimensionally stable parts
  • Inclination angle: 40 - 70°
  • Speed: according to C4N specification
  • Indexing operation possible
  • Speed Controller
  • Plug-and-Play
Storage and Feeder Hopper Conveyors

Design Options

Storage Hopper Conveyor with the following equipment:

Infeed:

hopper with fill level indicator sensors, lid and unloading hatch

Conveyor:cover hood made from polycarbonate
Outfeed:outfeed hopper
Stand:fixed with leveling bases

Example 1
further options possible

Feeder Hopper Conveyor with the following equipment:

Infeed:feeder hopper (metal sheets)
Outfeed:outfeed chute
Stand:adjustable in height and incline, on swivel castors
Trichterförderer Beispiel

Example 2
further options possible

Further options

Entleerungsöffnung mit Verschlussschieber und Füllstandsanzeige optisch
Unloading hatch with sliding lock and visual fill level indicator
Bunker mit Fülstandsanzeige Sensoren
Storage Hopper with sensor-based fill level indicator
Abgaberutsche-Abgabetrichter-Abgabehaube
Outfeed chute, outfeed hopper, cover hood
Storage and Feeder Hopper Conveyors

Stand

starr mit Stellfüßen
Fixed with leveling base
starr mit Lenkrollen
Fixed with swivel castors
Höhen- und neigungsverstellbar
Adjustable in height and incline
Storage and Feeder Hopper Conveyors

Downloads

Overview Downloads & Video
Robotunits_Storage and Feeder Hopper Conveyors
