Cobot Station

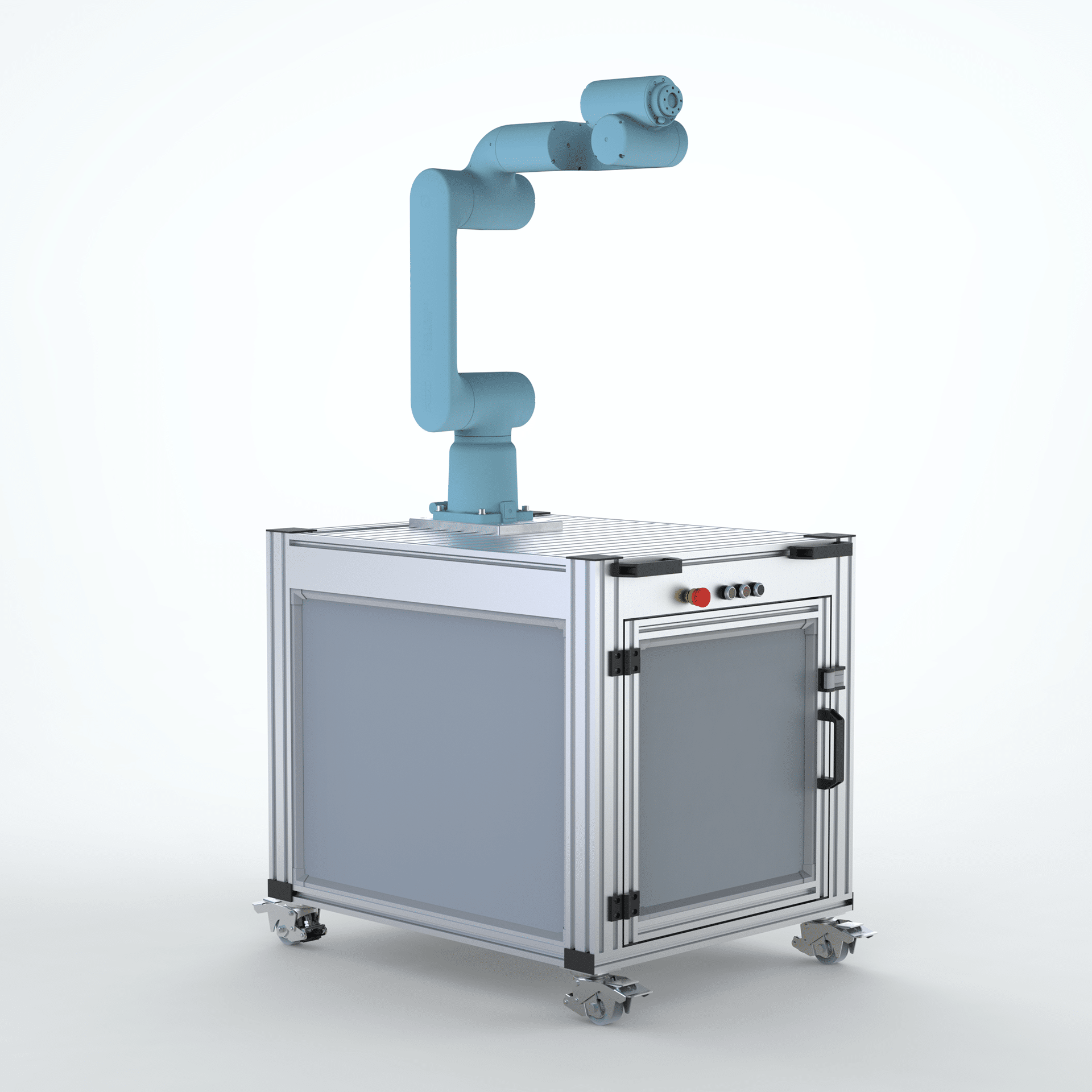

The Robotunits Cobot-Station allows quick and easy installation of your collaborative robot.

With the Cobot Station, machine operation, assembly, adhesive applications or simple pick & place tasks can be quickly tackled. Application-specific components such as tool holders, sensors or probes can be easily attached to the profile slots. Thanks to storage space for the control elements and lifting rollers with locking feet, the base ensures maximum mobility for individual application options.

Cobot Station
Cobot-Station

Application example

Cobot-Station

Economical and efficient

Applications such as machine operation, assembly, gluing applications or simple pick & place tasks can be quickly handled.

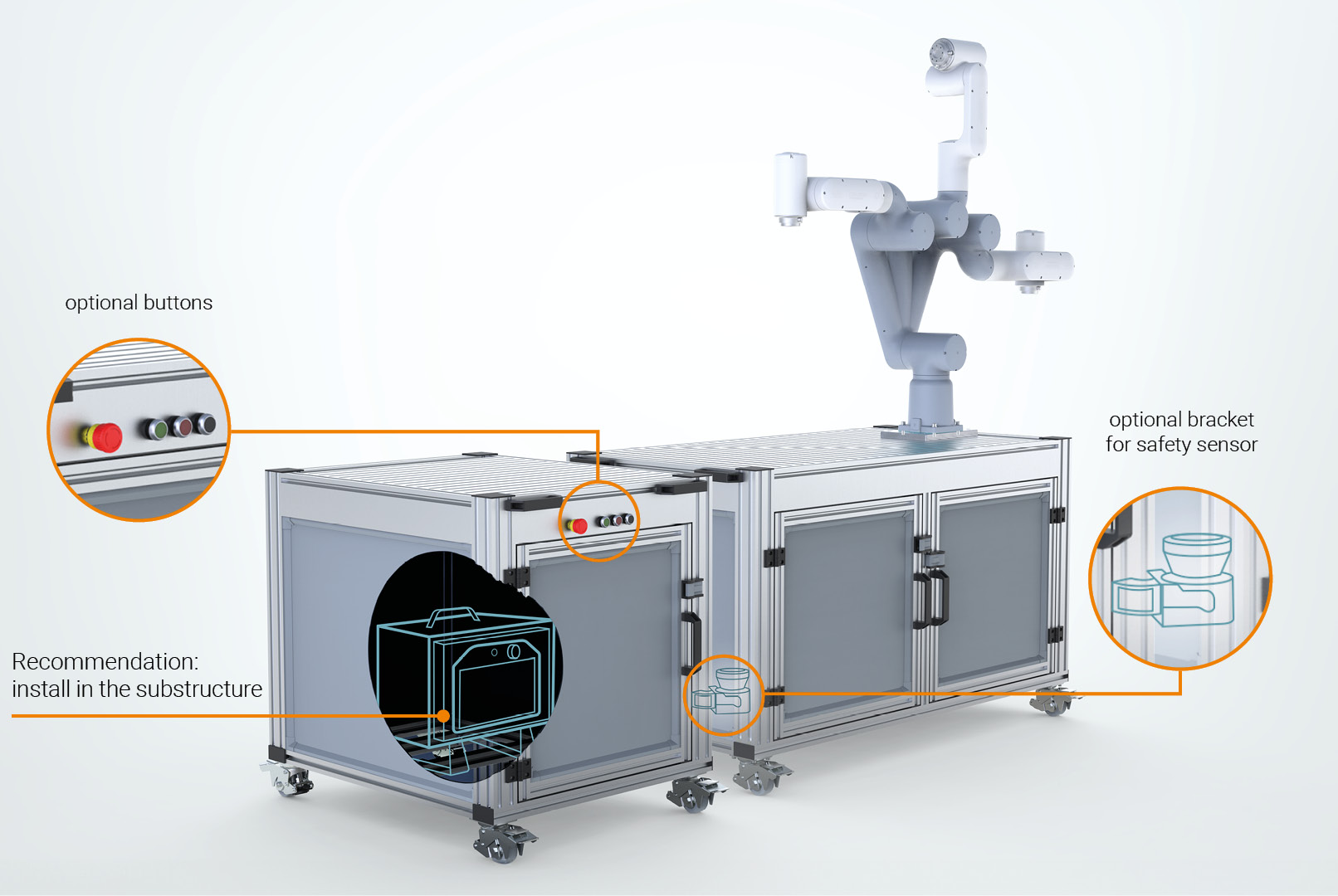

There is sufficient space in the substructure to accomodate the most common Cobot controllers. These are also easily accessible via the door. Application-specific components (such as holders for teach pendants, workpiece holders, tools, etc.) can be mounted to the open t-slots of the work surface. Push buttons or sensors can be subsequently mounted by the operator.

Via lifting rollers with integrated locking feet, the substructure is mobile and can be stably positioned for operation.

Not included in the delivery: Cobot, controls and wiring

Facts

  • 100% solution from the Robotunits modular system
  • customized
  • proven application

Benefits

  • delivery after 5 working days
  • can be adapted to on-site conditions
  • compatible for a wide range of cobots
Cobot-Station

Technical data

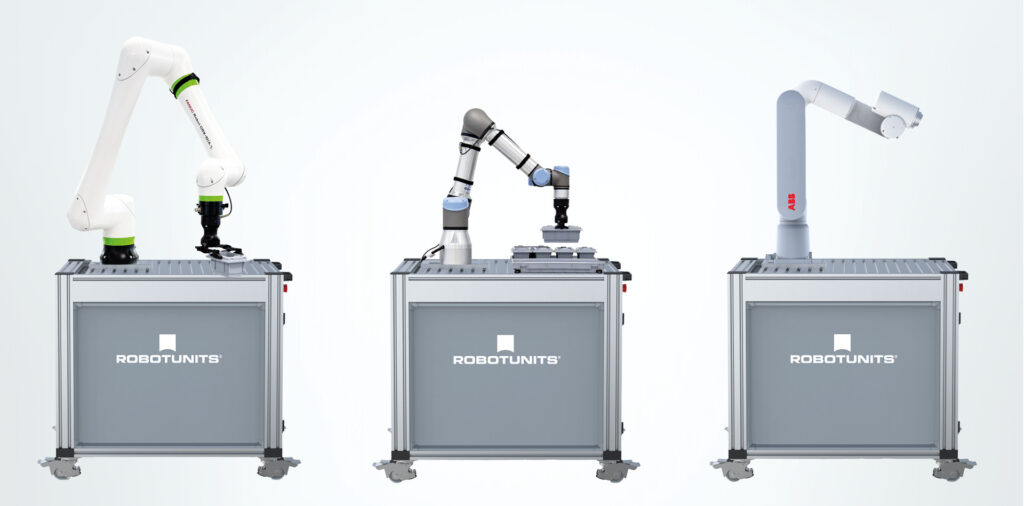

Robotunits Cobot-Stationen Kompatibilität mit ABB, Fanuc und UR.
SubstructureUnitValue
min. width[mm]800
min. lenght[mm]1000
max. top surface height[mm]1000
min. weight[kg]70
Roboter
max. range[mm]1400
TCP speed[mm/s]500
max. handling weight[kg]10
max. dead weight of robot[kg]40
ControlsRecommendation: install in the substructure

Compatible with:

ABB
IRB 14050 (YuMi)
CRB 15000 (GoFa)
IRB/CRB 1100 (SWIFTI)

Fanuc
CR-4iA
CRX-5iA
CR-ziA und CR-7iA/L
CRX-10iA
CRX-10iA/L

UR
UR3e
UR5e
UR10e

Compatible with side cable outlet!
Other outlets and robot models are available on request.

Any questions?
Our sales team will be happy to inform you about further possibilities and develop your individual solution
in collaboration with you. Find a contact person

Cobot-Station

CAD data

CAD data for your cobot station

Plan precisely and efficiently: The CAD data for the Robotunits cobot station in sizes 1010 x 810 mm and 1600 x 810 mm are now available to download as STP files.
Robotunits Cobot-Station

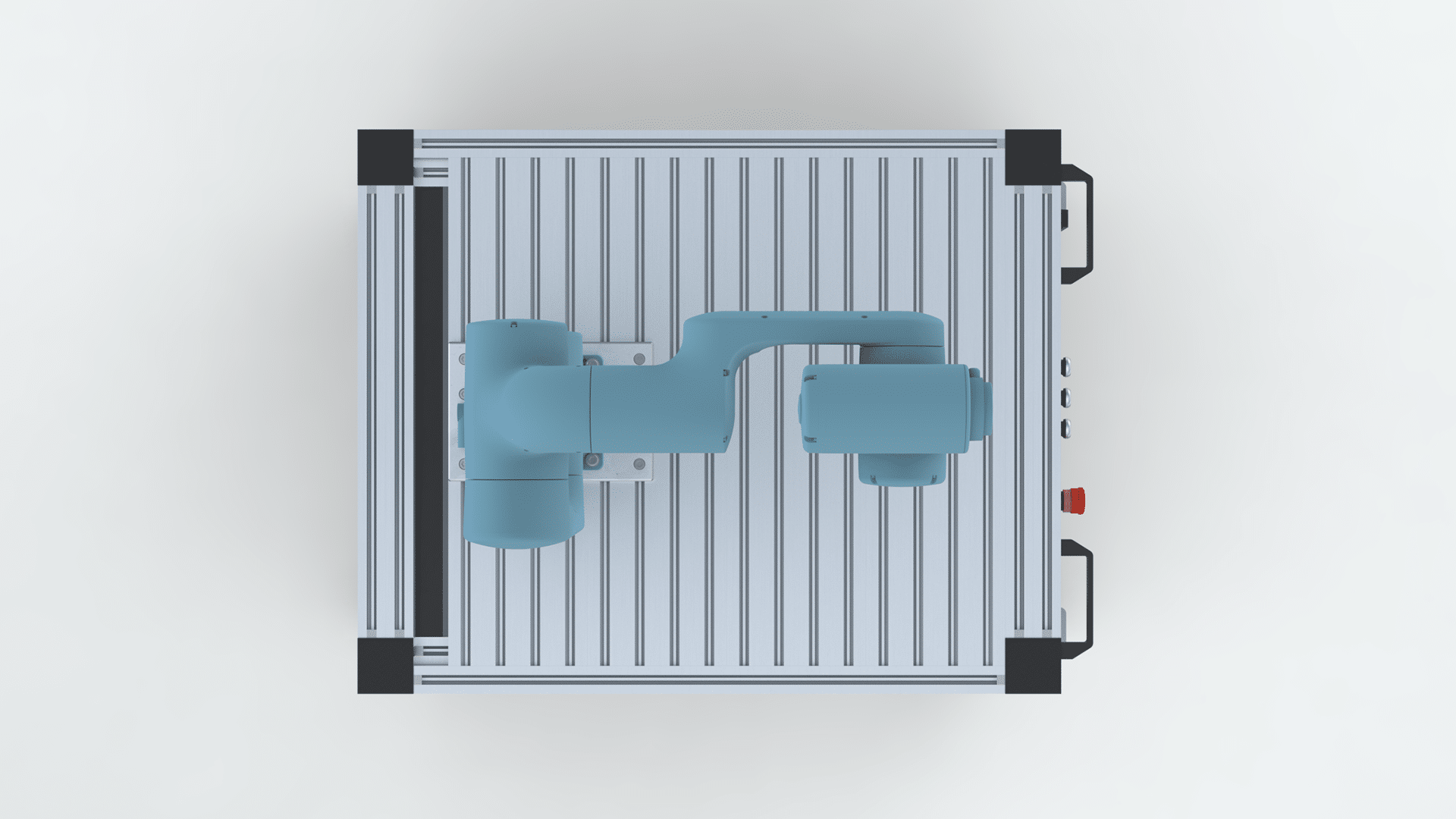

Dimensions: Example 1010 x 810 mm

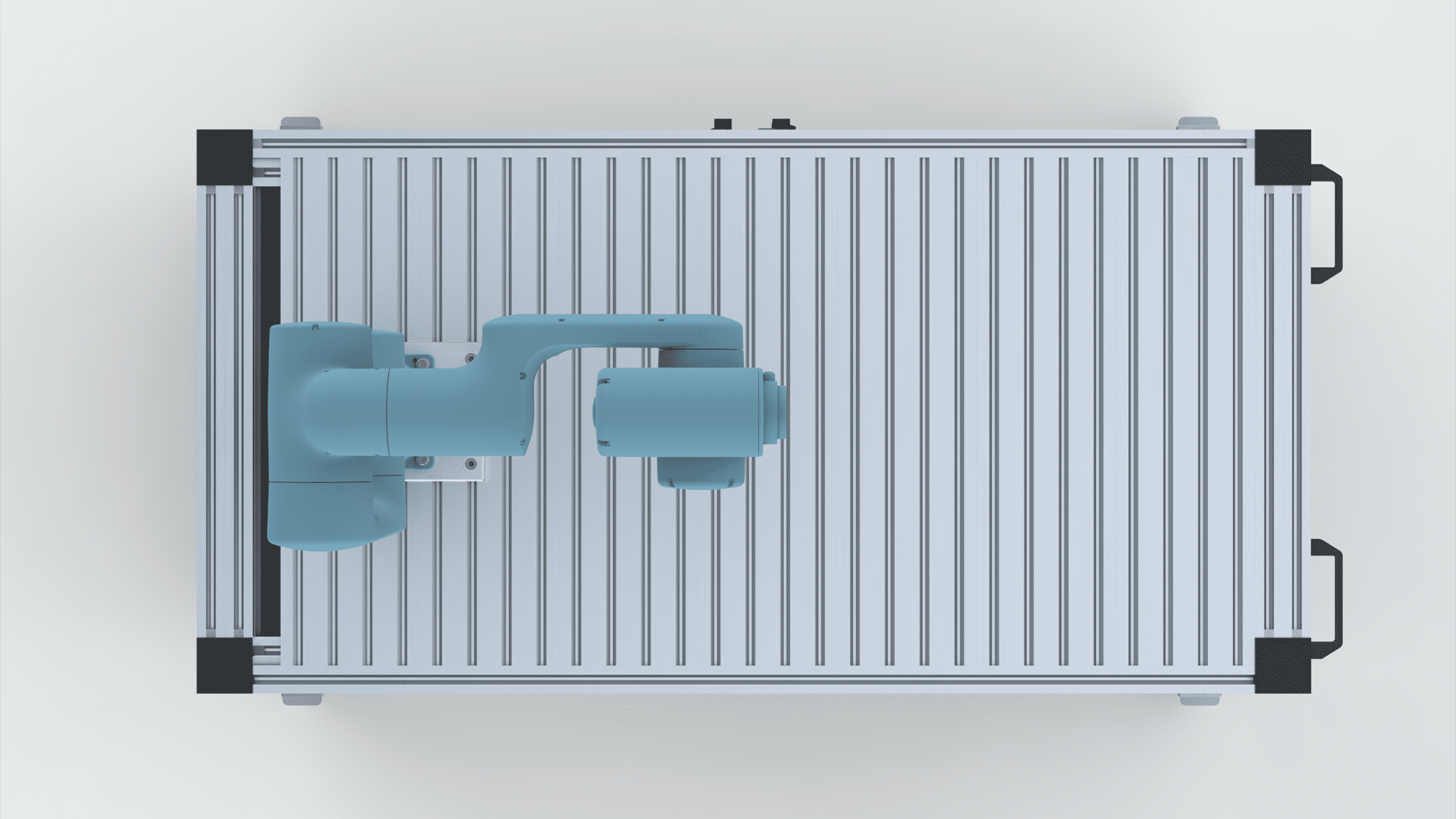

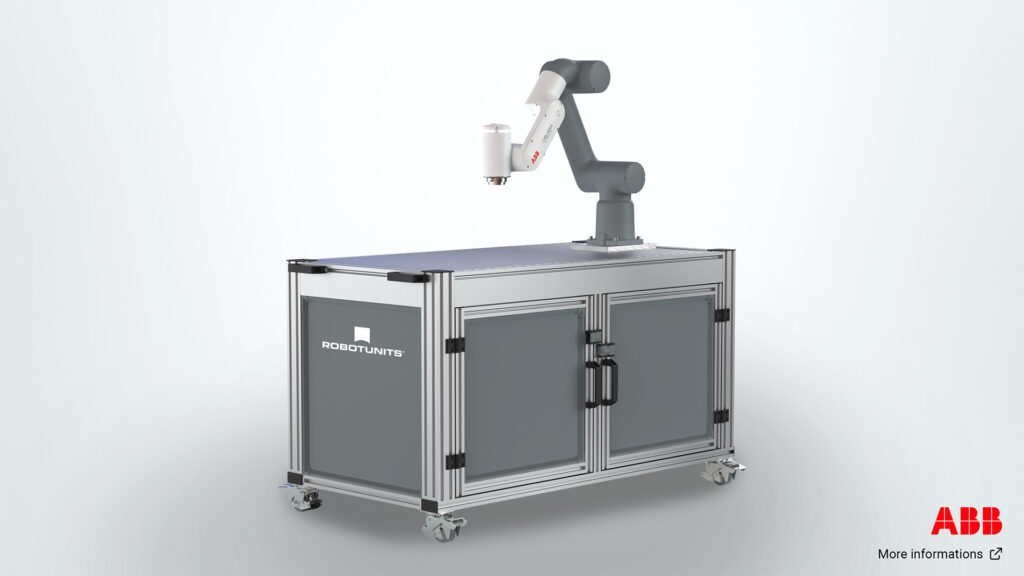

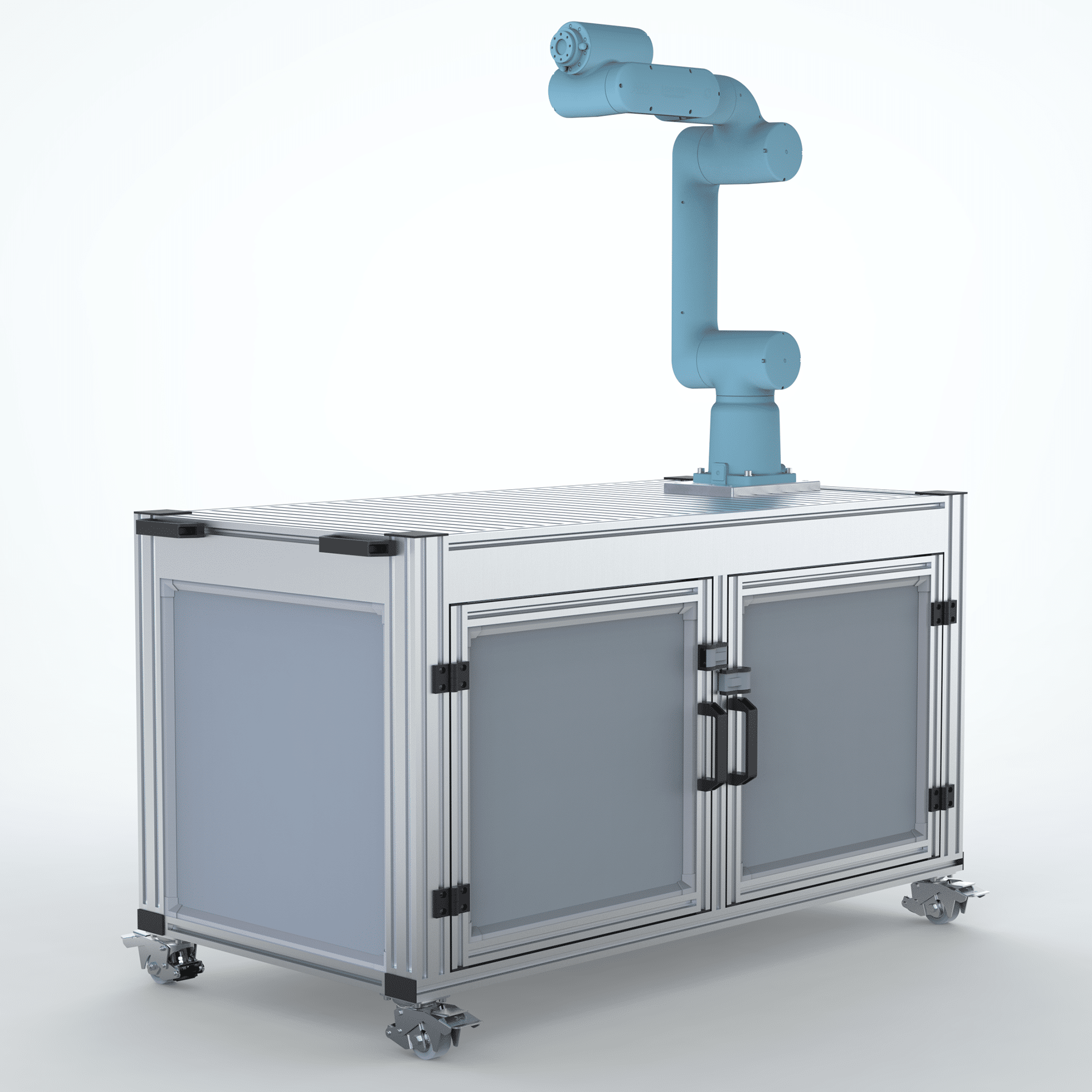

Dimensions: Example 1600 x 810 mm
