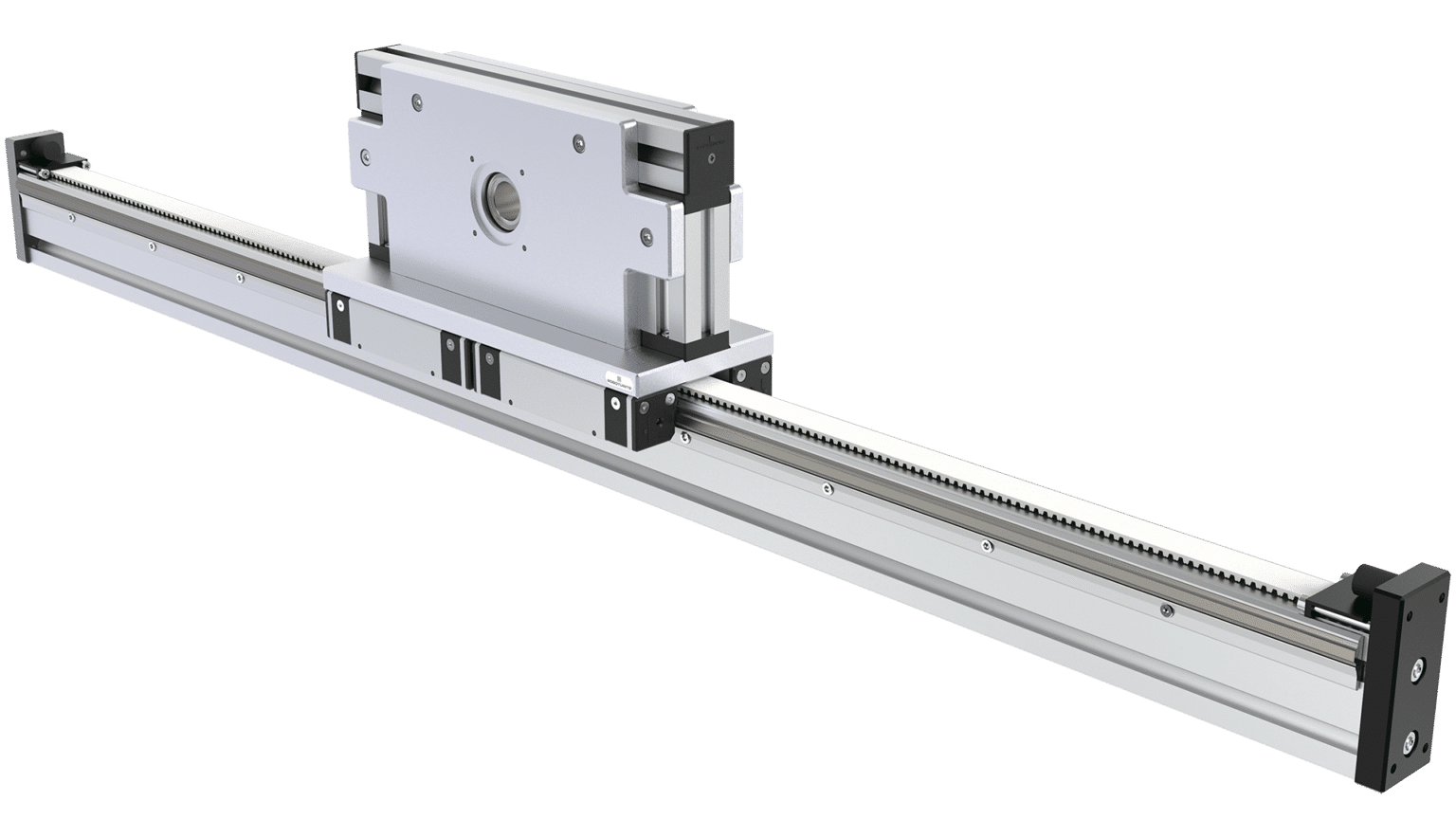

Omega Linear Motion Unit

Precise linear motion technology for advanced applications

The standardized Omega Linear Motion Unit is used to transport, move or push all types of workpieces. The areas of application of this linear motion unit range from gantry axes to transmission units.

Facts

  • simple, modular design in the 50mm extrusion series, lengths up to 12m possible
  • can be combined and integrated into the entire Modular Automation System
  • hardened guiderails allow heavier loads

Benefits

  • cost effective and customized linear motion system
  • short design, assembly and delivery times
  • high wear resistance allows smooth and quiet operation

Default values

  • base extrusion length up to 6 meters
  • fully based on 50mm extrusion series
  • maximum torque (drive torque): 60Nm
  • positioning accuracy ±0.2mm (excl. drive backlash)
  • dead weight without motor is15.0kg

Special features

  • playfree datum edge positioning of the guide rail
  • expansion coupling system
  • T-slots in extrusion are left free for attachments
3-axis linear unit gantry

3-axis linear unit gantry

Linear motion system
