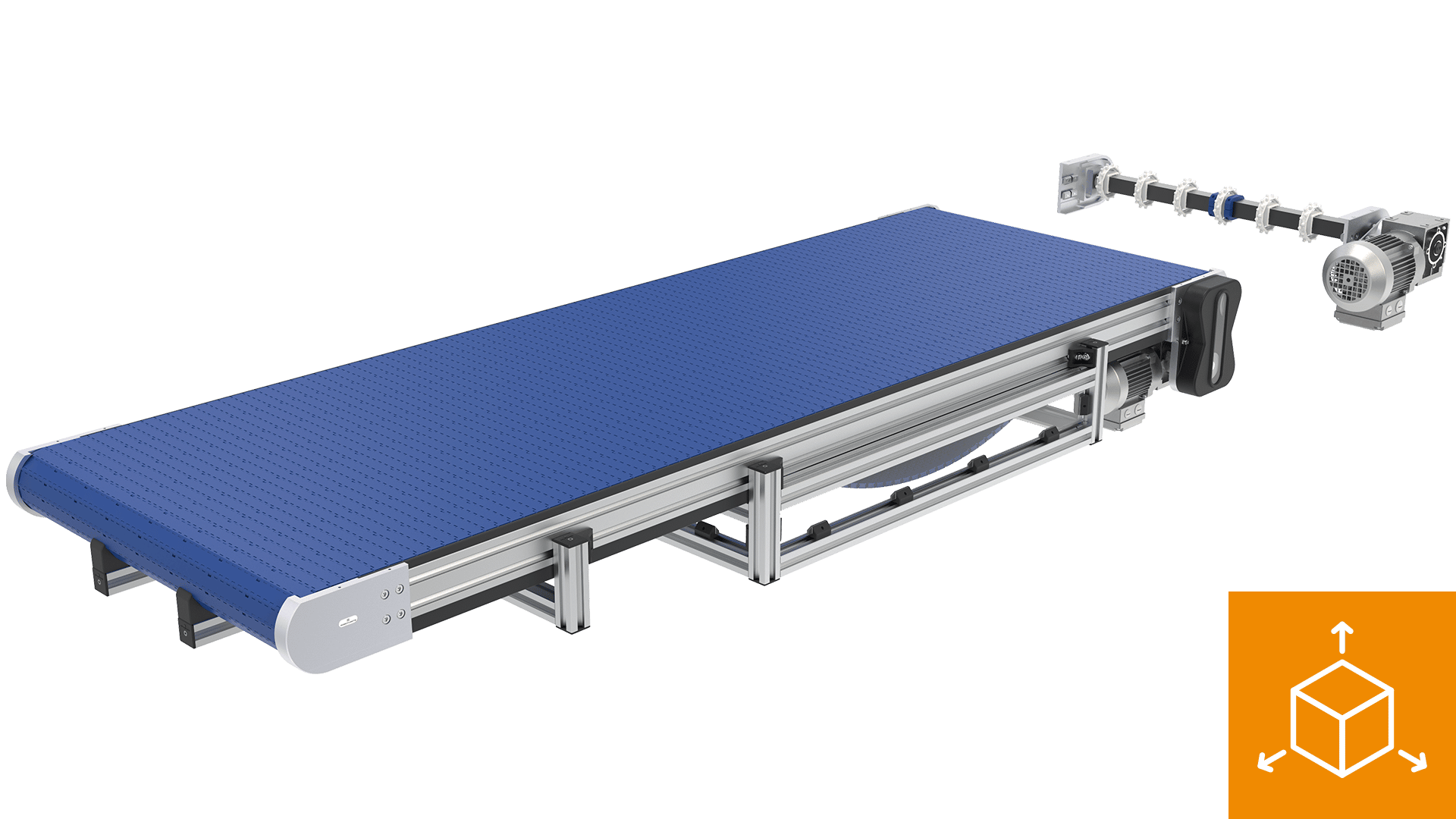

C8M type: A 315 x 2000

Modular Belt Conveyor
Conveying direction pulling
Frame width[mm]: 315
Length[mm]: 2000
pitch diameter[mm]: 98.6

Manufacturing number: CBTABF
Modular belt type: M2520POM
Module belt properties: Blue, closed
Dimensions [WxLxT mm]:300 x 4343 x 10

Speed[m/min]: 25.70
Drive : SEW Spiroplan gear motor WAF20DRN71MS4
230/400V, 50Hz IP54
P = 0,25 kW, i = 14,33
Aluminum not painted
Terminal box position [°]: 270
Motor orientation[°]: 0

Temperature control: No
Motor configuration: End drive with timing belt left

Load[kg]: 30
Accumulating operation: No
Slider bed plastic PE-UHMW, black
Completely assembled and tested

We recommend a starting and braking ramp for a longer service life.
