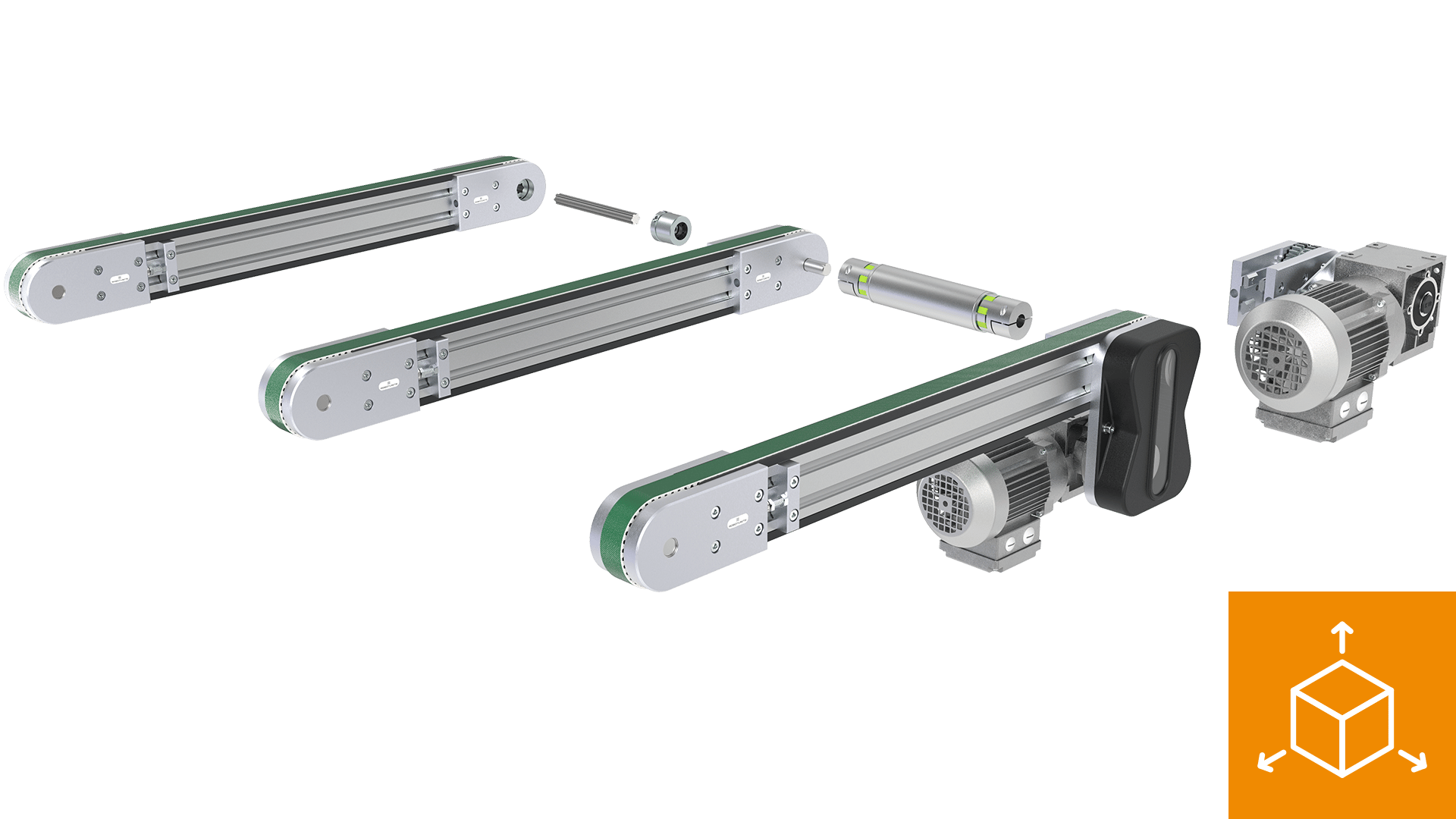

C8T type: A 2002

Timing Belt Conveyor
Conveying direction: Pulling
Number of lanes: 1
Length[mm]: 2002

Manufacturing number: COL8101SNN
Transport belt type: 32 TG10/K6/PAZ/”V”
Dimensions W x L [mm]: 32×4110
Characteristics: Medium adhesive, White

Speed[m/min]: 19.94
Drive : SEW Spiroplan gear motor WAF20DRN71MS4
230/460V, 60Hz IP54
P = 0.25 kW. i = 24.5
Aluminum not painted
Terminal box position [°]: 270
Motor orientation[°]: 0

Temperature control: No
Motor configuration: End drive with timing belt left

Load[kg]: 180
Accumulating operation: No
Slider bed: Plastic slider

Side guide : without
We recommend a starting and braking ramp for a longer service life.

Completely assembled and tested
